Iveco T-Way AD410T47WH AT Fassi F1250R2.8 HXP 8x8 Crane Truck

Back to overview
Availability. Quality. Reliability.

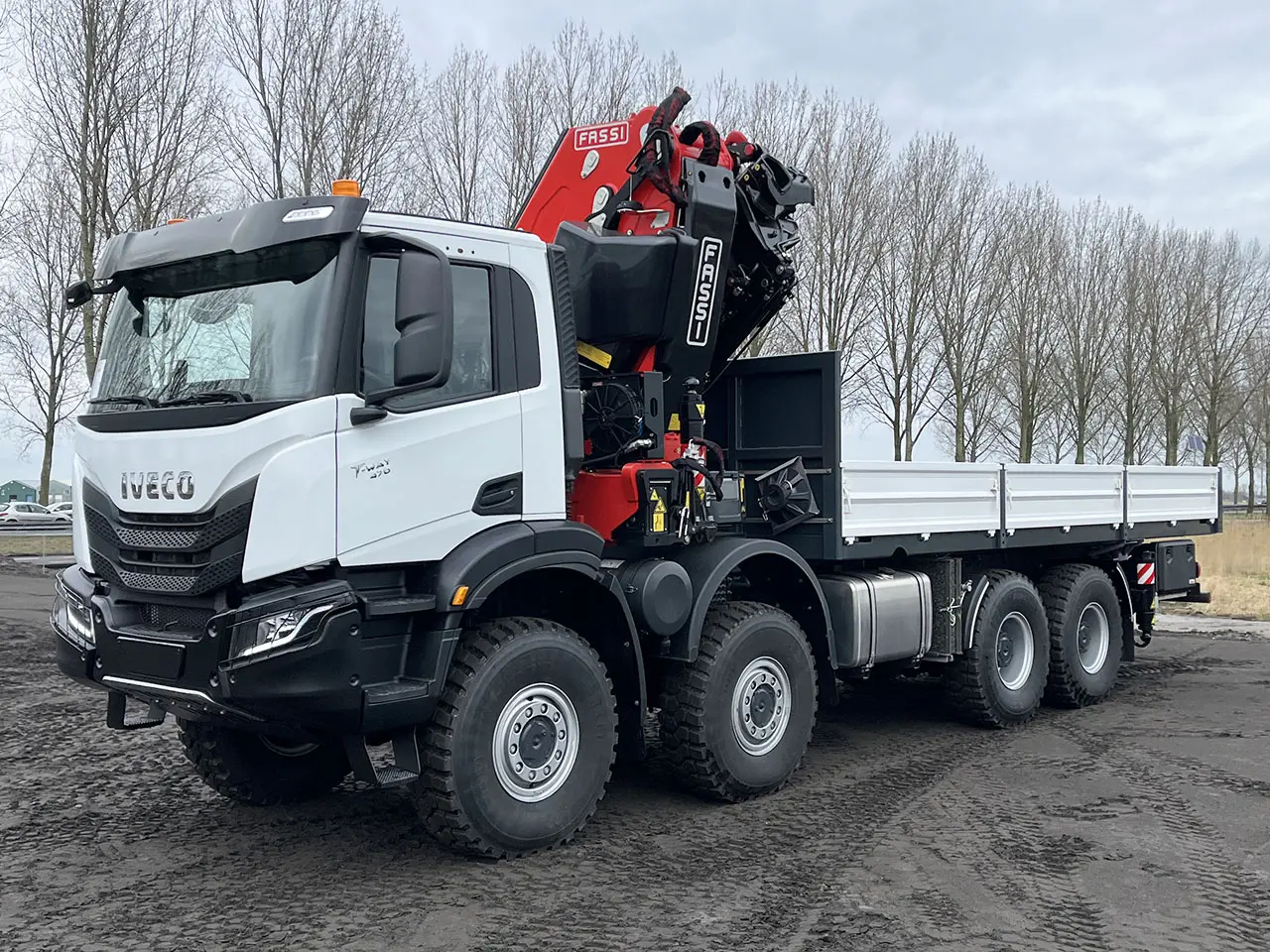

Iveco T-Way AD410T47WH AT Fassi F1250R2.8 HXP 8x8 Crane Truck

Price on request

Total units (2)

Quotation request

Specifications
  • ID
    IV5224
  • Vehicle status
    New / Unused
  • Construction
    Crane Truck
  • Axle-configuration
    8x8
  • Engine power
    475hp/349kW
  • Emission code
    EURO-3
  • Transmission
    Automatic
  • Gearbox
    TX 16
  • PTO
    NH/4C
  • Drive
    Left hand drive
  • Suspension
    Spring
  • Wheel base
    5.020 mm
  • Tyres
    14.00R20
  • Cabin
    Day
  • Model year
    2026
  • Construction brand
    Fassi
  • Remarks
    Fuel tank: 390 ltr.
    Air conditioning

    Equipped with Fassi crane and flatbed:
    Type: F1250R2.8 HXP Techno
    Max. lifting moment 91.26 tm
    Standard lifting moment 895 KNm
    Standard load at max horizontal outreach 4.060 kg
    Standard hydraulic outreach 19.60 m

    Lifting capacity:
    22.000 kg / 4.05 m
    20.500 kg / 4.45 m
    14.880 kg / 6.05 m
    11.475 kg / 7.70 m
    9.100 kg / 9.45 m
    7.290 kg / 11.50 m
    6.045 kg / 13.55 m
    5.135 kg / 15.70 m
    4.530 kg / 17.60 m
    4.060 kg / 19.60 m

    Remote controlled
    Lifting hook
    IMC integral machine control
    FX990 control unit
    D900 digital distributor bank
    V7RRC radio remote control unit
    ADC automatic dynamic control
    FX991 - touch screen display

    Flat-bed twist-locks and lashing rings

    Complete specification in PDF.

    Pre-Order Status:
    Trucks are not yet in stock, they are in production and delivery to us will take place from 03/2026 - 04/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
