Iveco T-Way AD410T47WH AT Fassi F1150RA2.28

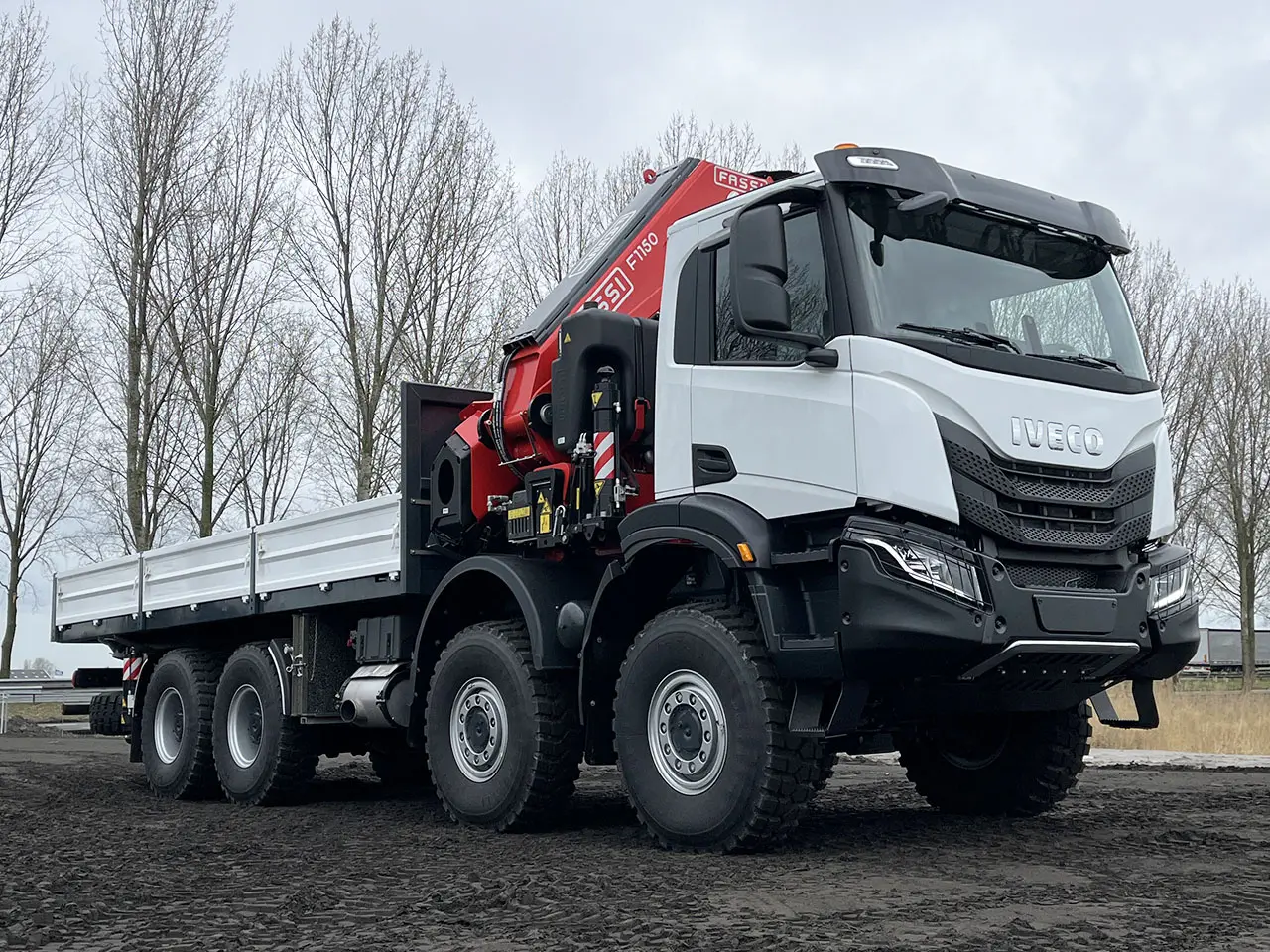

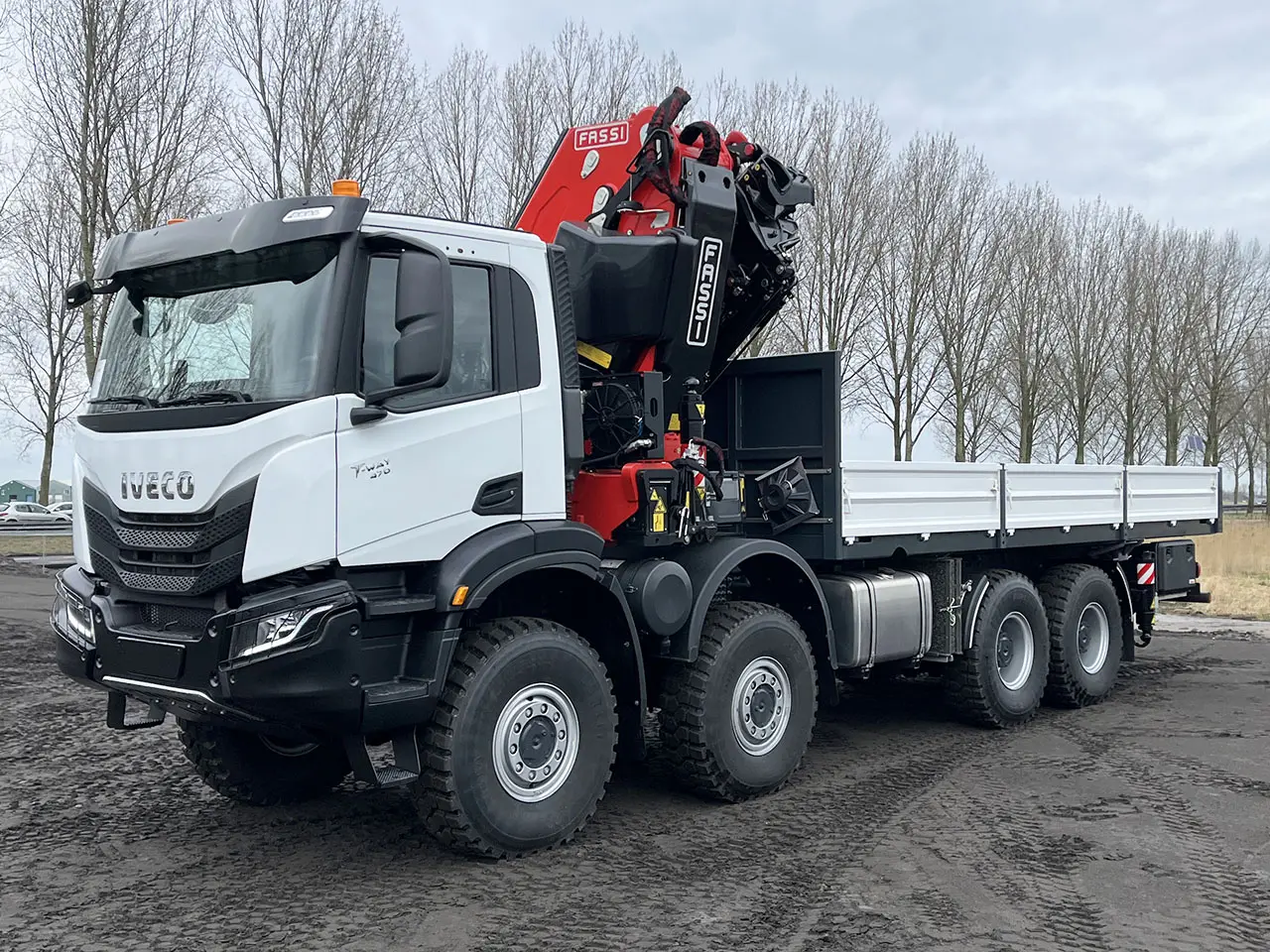

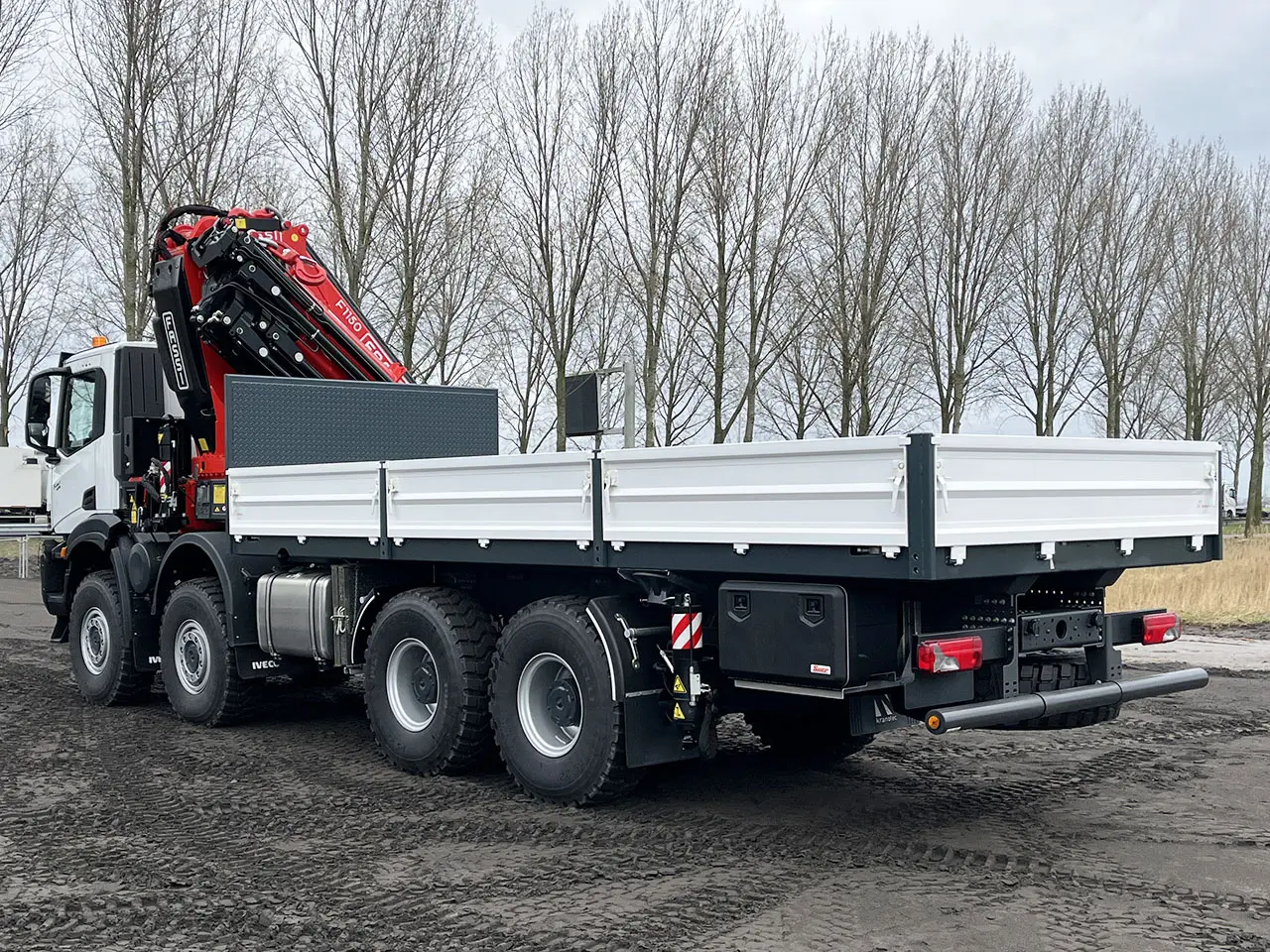

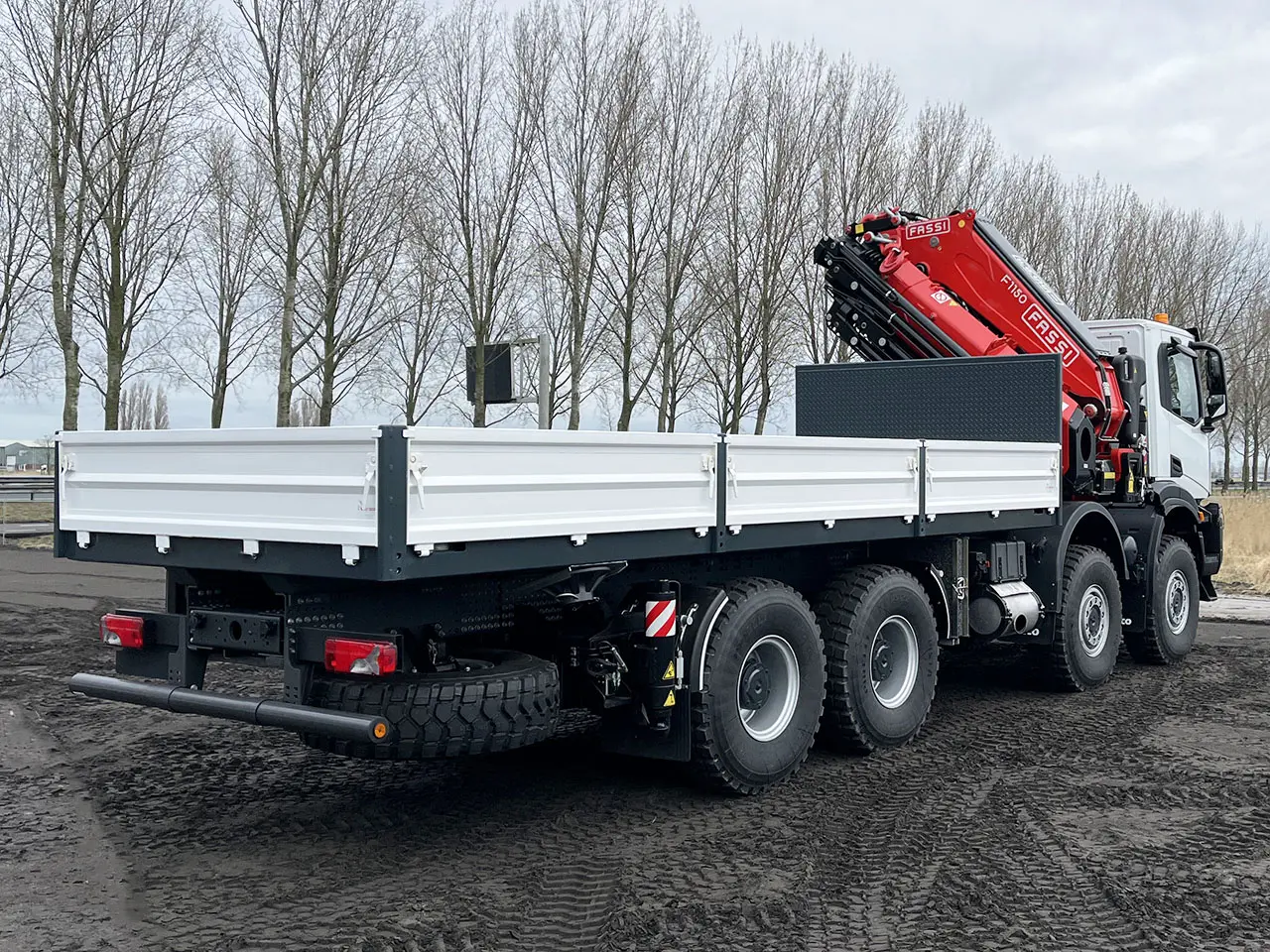

Iveco T-Way AD410T47WH AT Fassi F1150RA2.28 8x8 Crane Truck

Net unit price EXW

€ 357.500

Total units (1)

Quotation request

Specifications
  • ID
    IV4894
  • Vehicle status
    New / Unused
  • Construction
    Crane Truck
  • Axle-configuration
    8x8
  • Engine power
    470hp/346kW
  • Emission code
    EURO-3
  • Engine type
    F3HGE611
  • Transmission
    Automatic
  • Gearbox
    ZF16TX2240TO
  • Drive
    Left hand drive
  • Suspension
    Spring
  • Wheel base
    5.020 mm
  • GVW
    41.000 kg

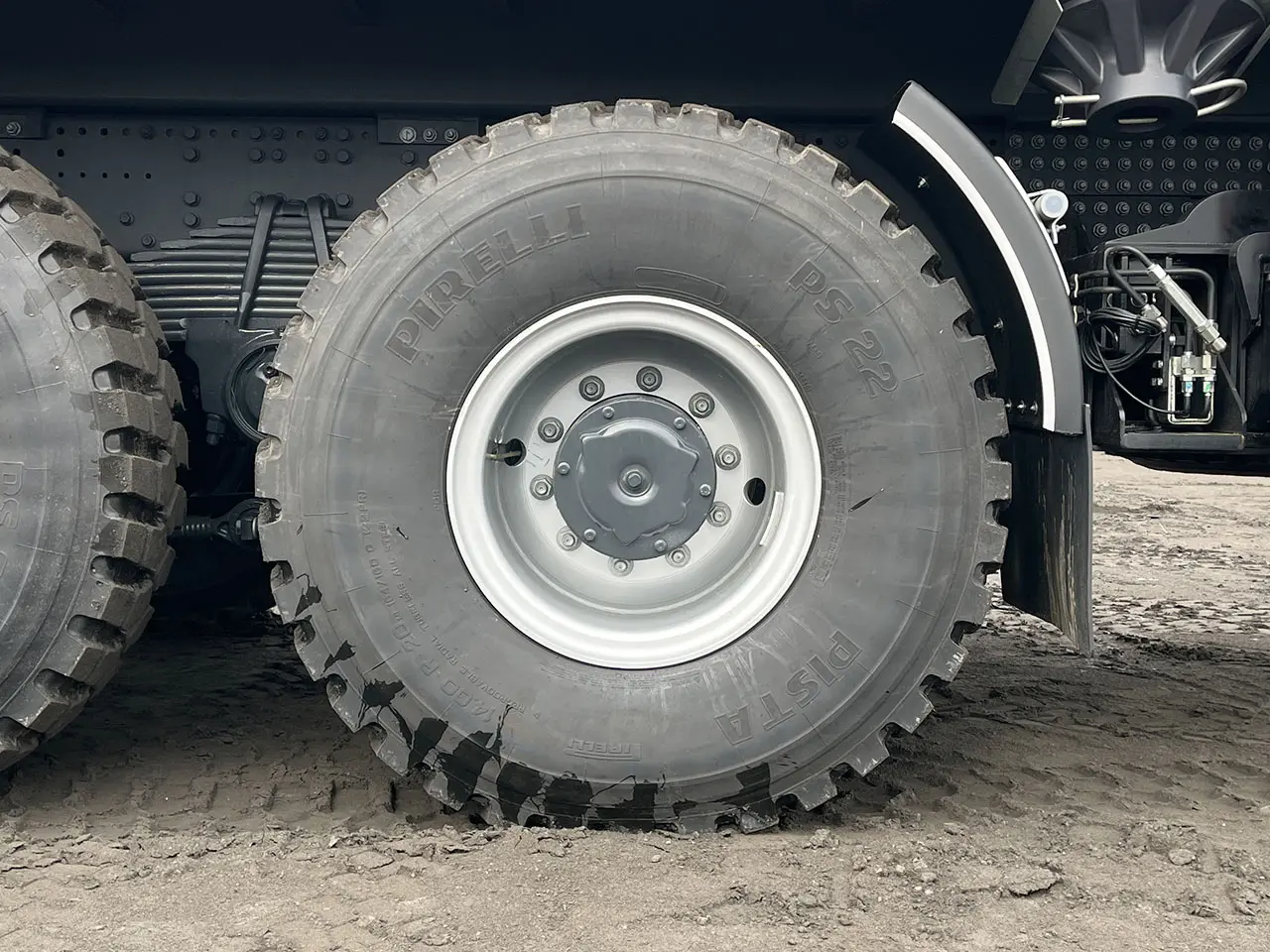

  • Tyres
    14.00R20
  • Cabin
    Day
  • Model year
    2024
  • Construction brand
    Fassi
  • External dimensions
    1065x250x423cm
  • Remarks
    Fuel tank: 400 ltr.

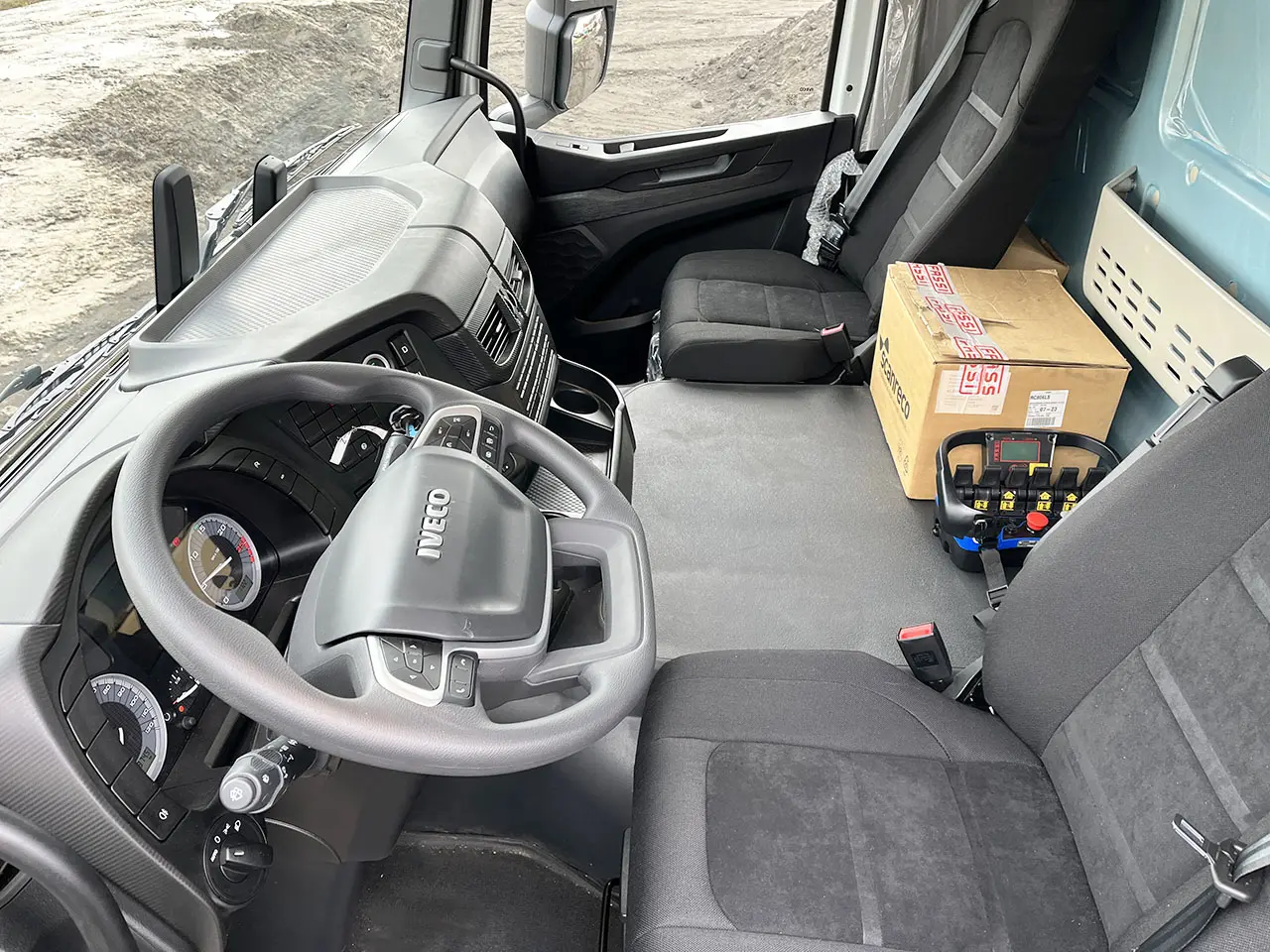

    Air conditioning

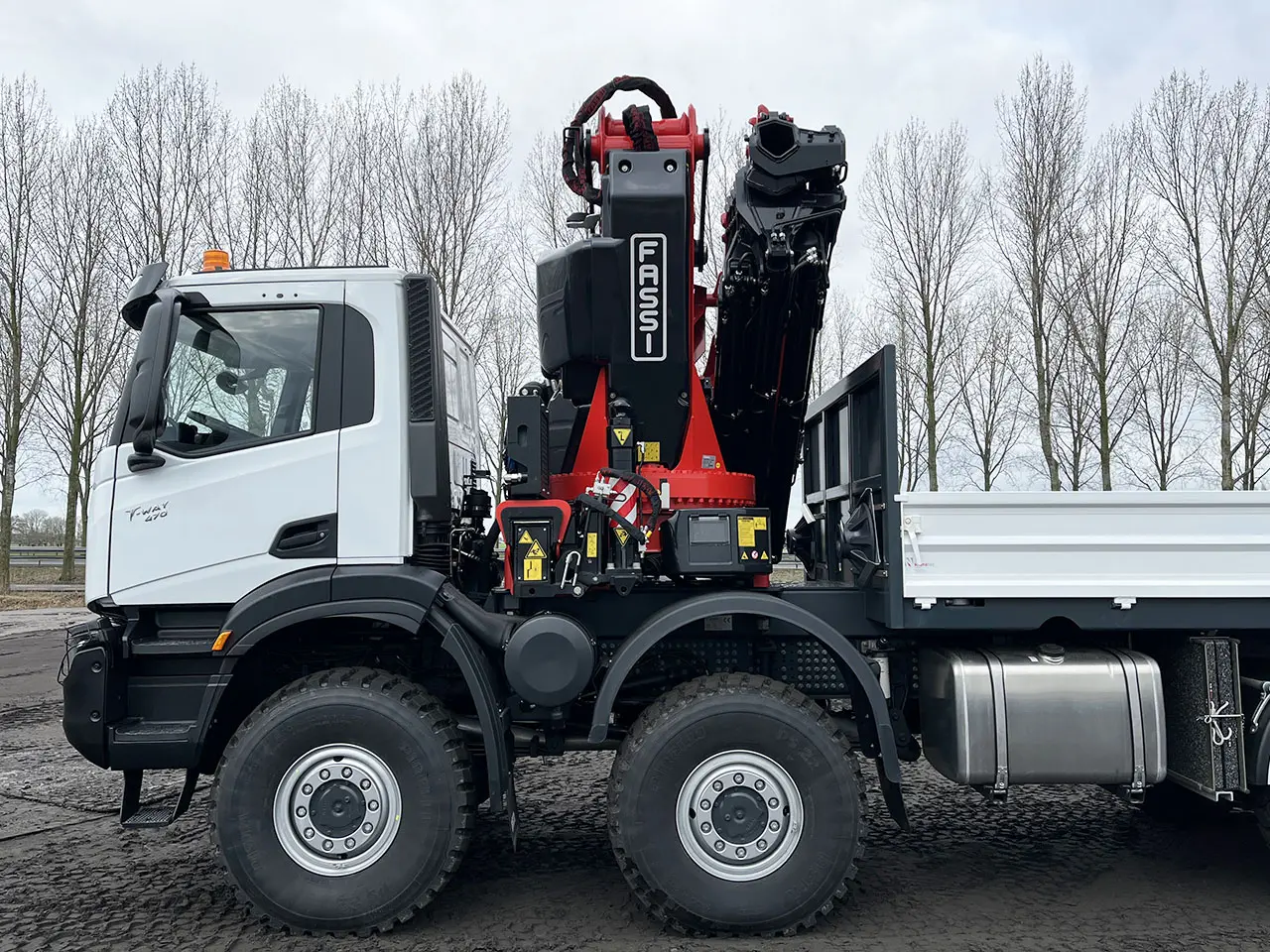

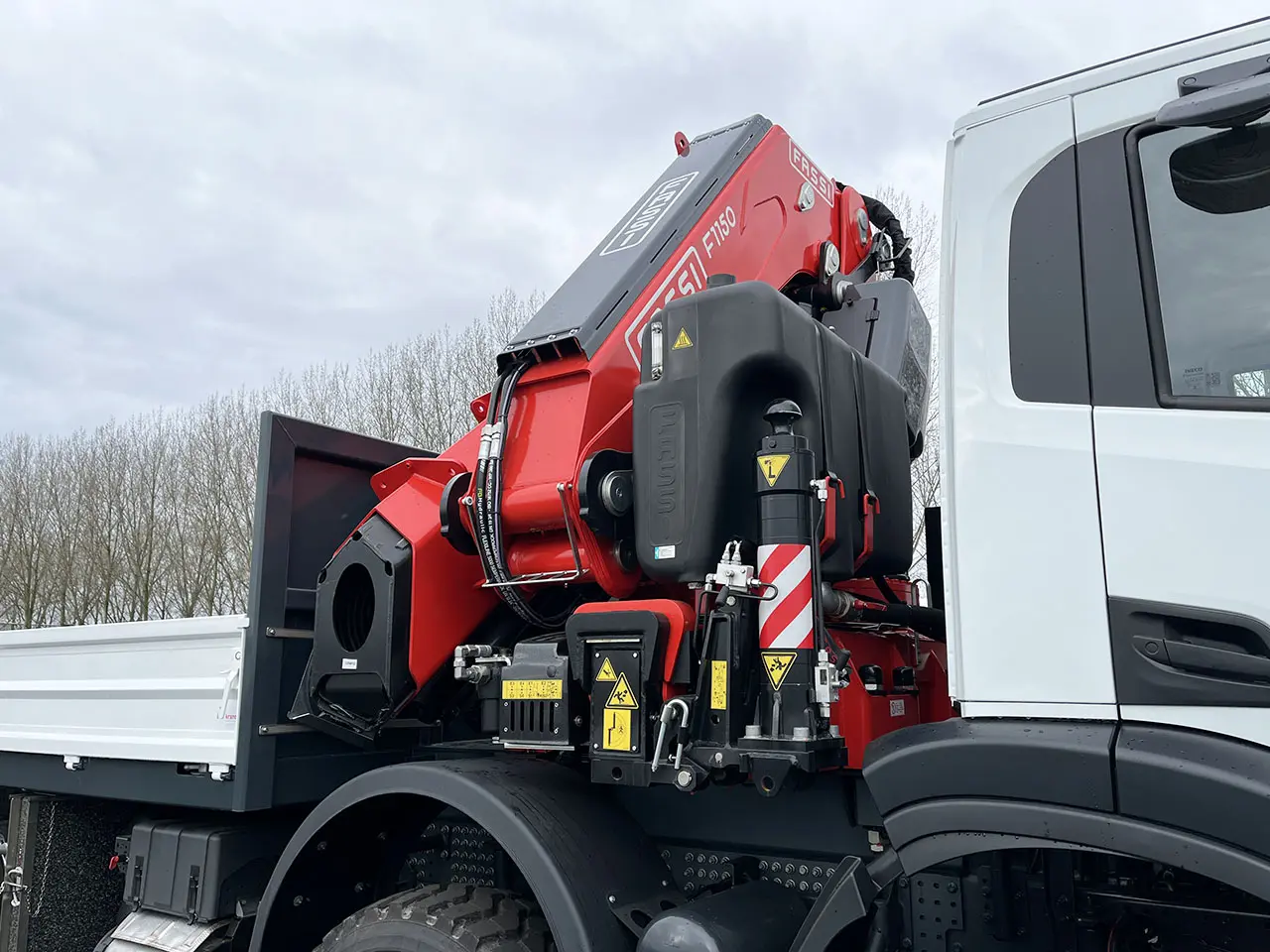

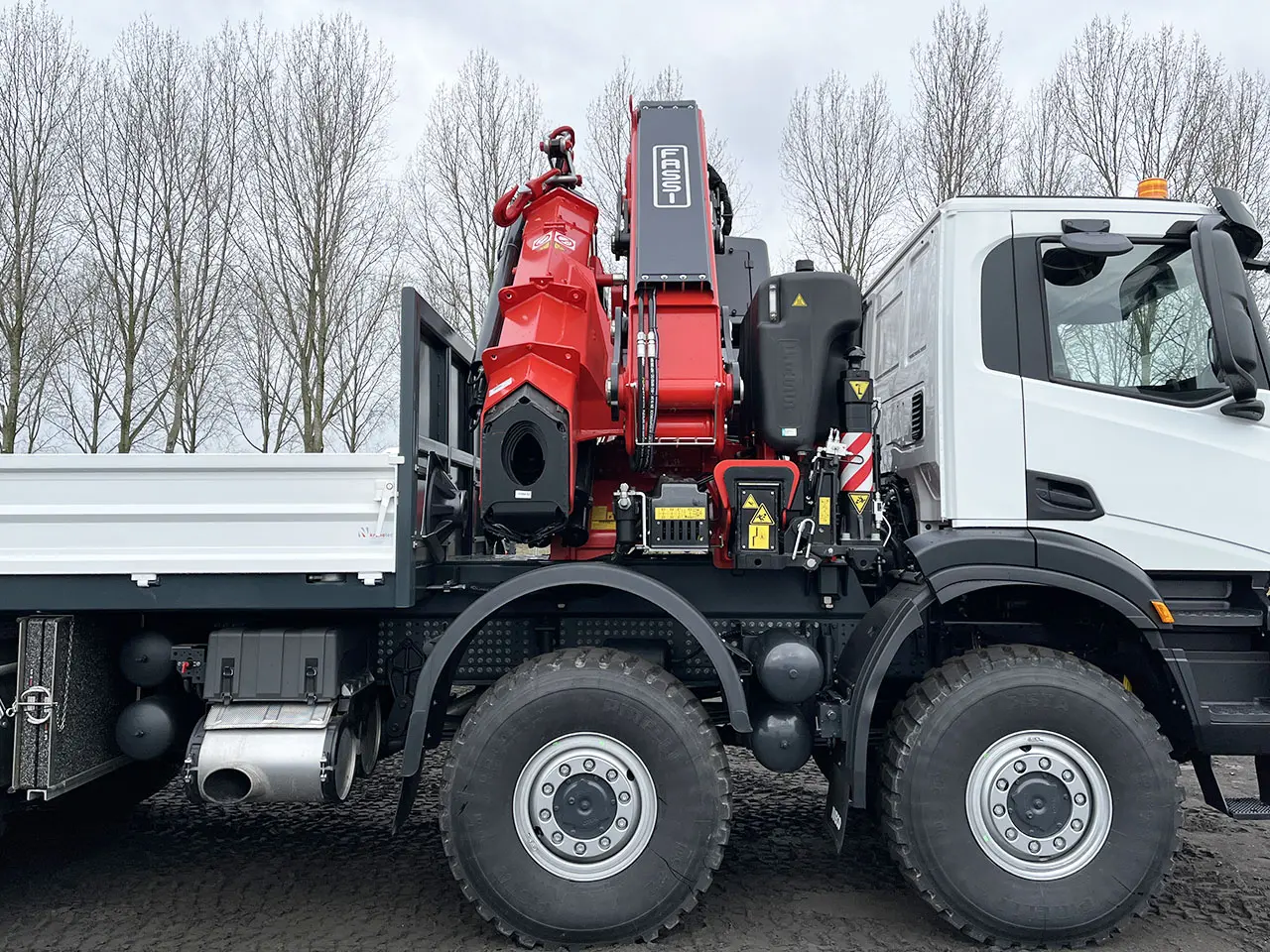

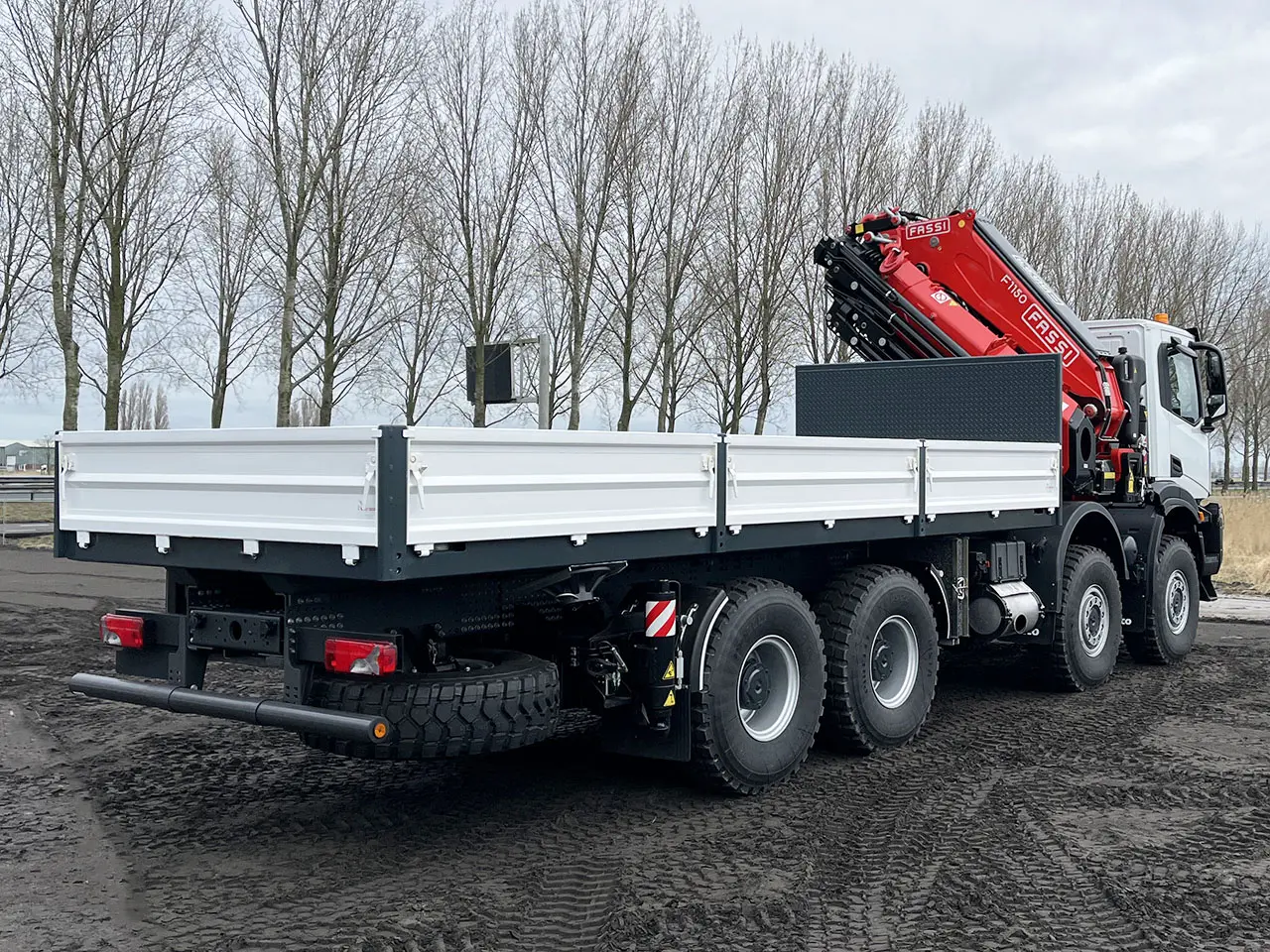

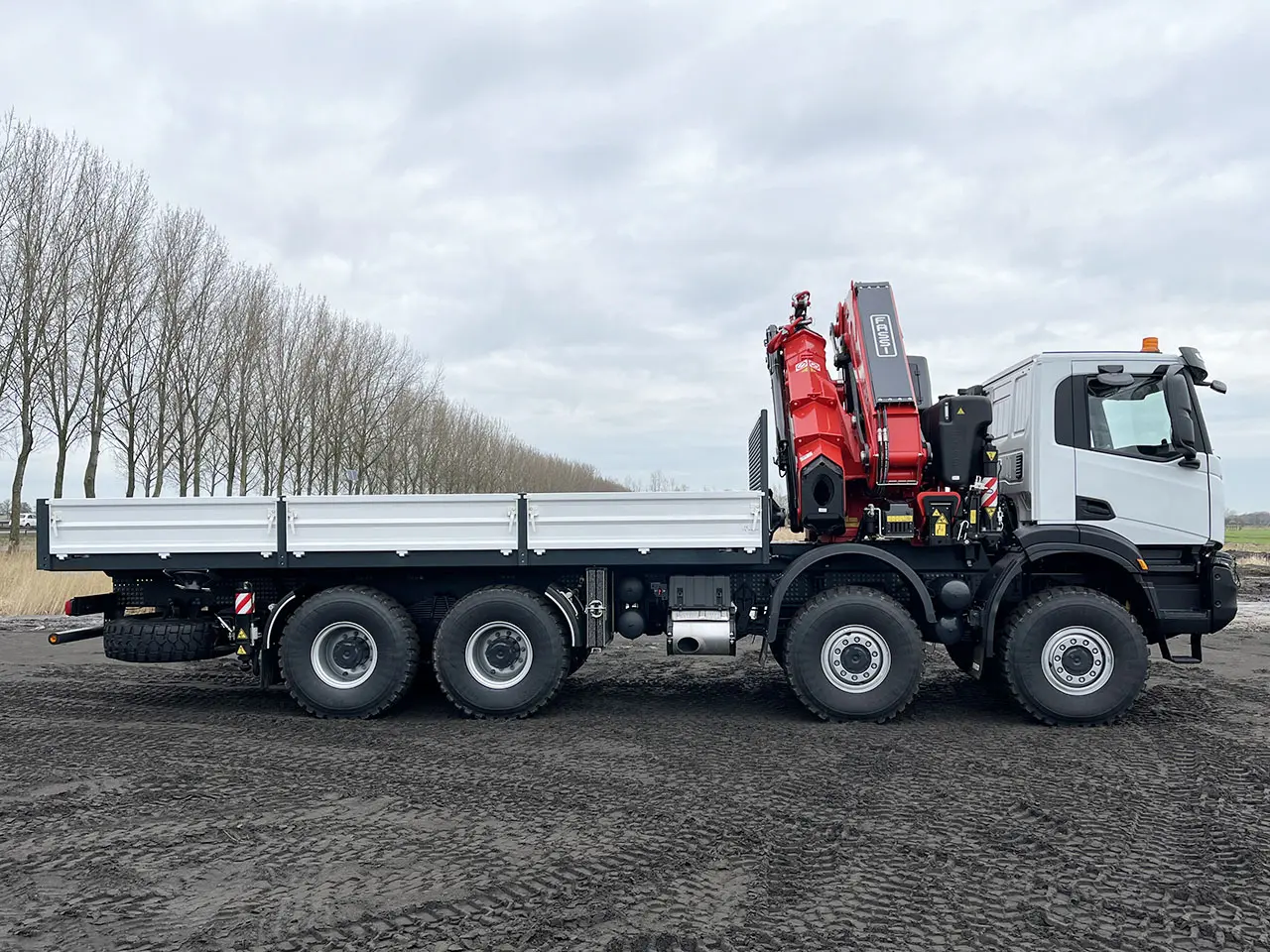

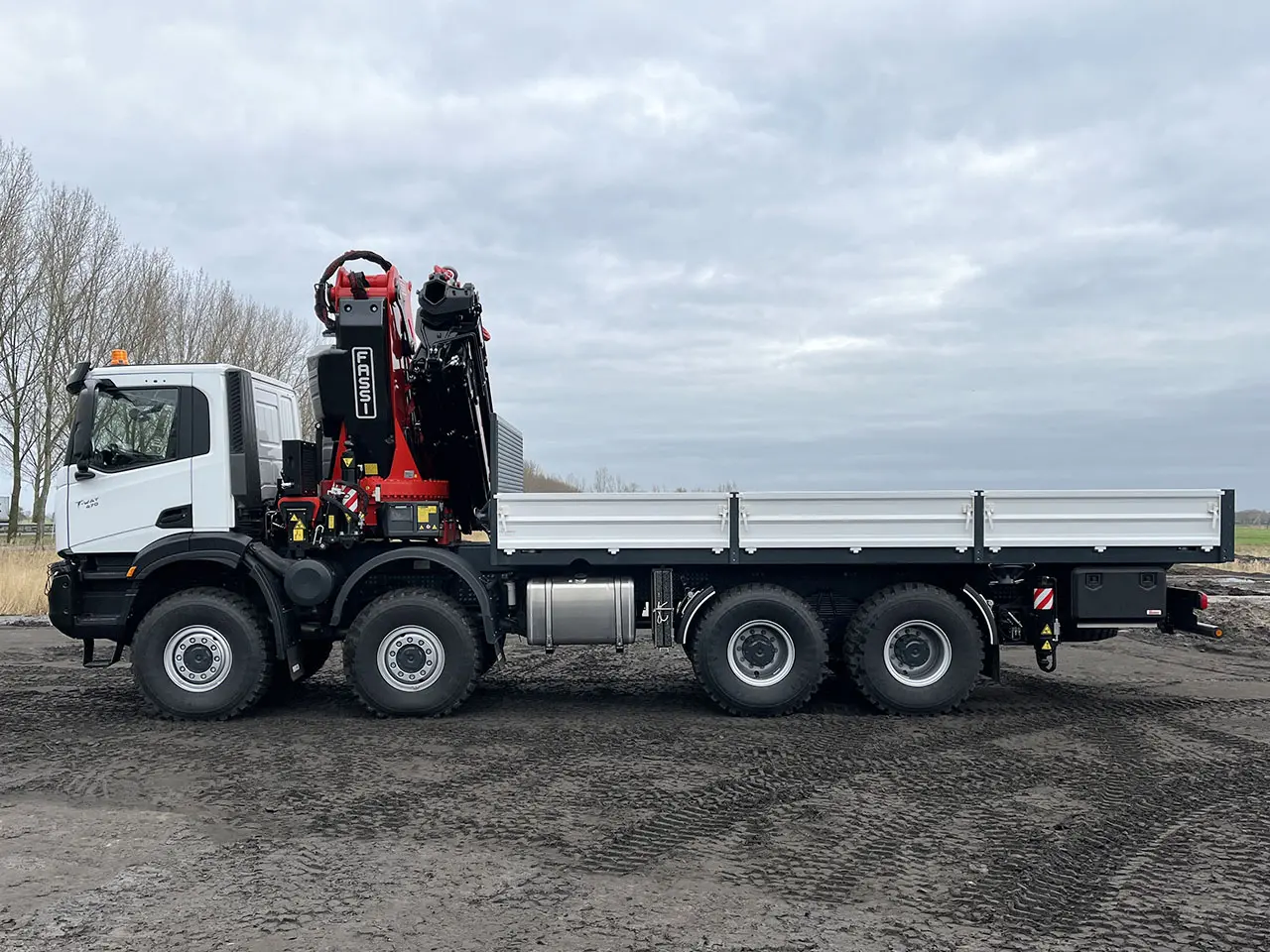

    Equipped with Fassi crane and flatbed:
    Type: F1150RA2.28
    Max. lifting moment 90.01 TM

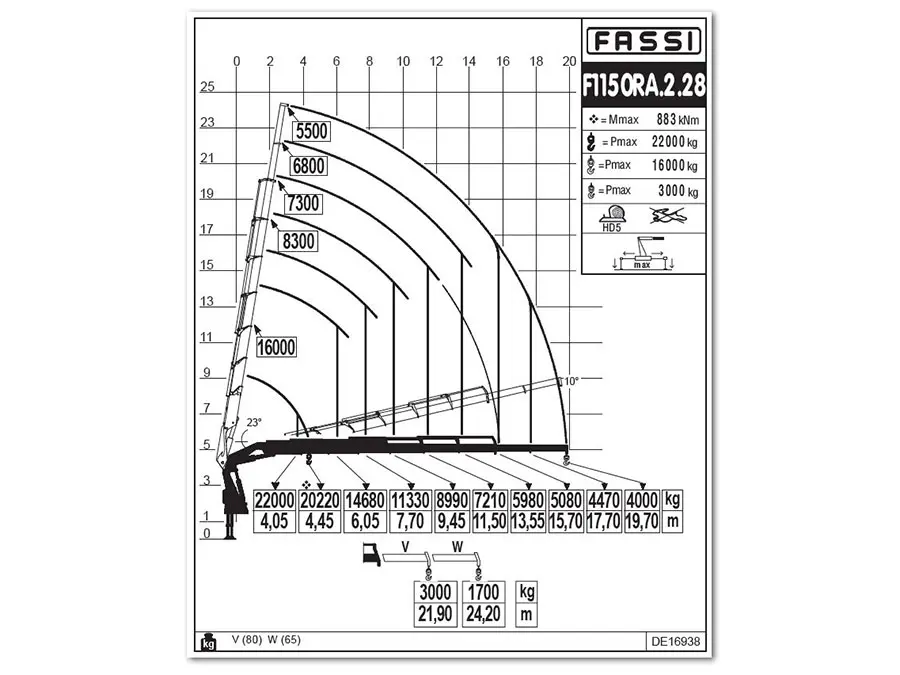

    Lifting capacity:
    22.000 kg / 4.05 m
    20.220 kg / 4.45 m
    14.680 kg / 6.05 m
    11.330 kg / 7.70 m
    8.990 kg / 9.45 m
    7.210 kg / 11.50 m
    5.980 kg / 13.55 m
    5.080 kg / 15.70 m
    4.470 kg / 17.70 m
    4.000 kg / 19.70 m

    Optionally 2 manual extension available :
    3.000 kg / 21.90 m
    1.700 kg / 24.20 m

    Max. hydraulic outreach 19.70 m
    Max. operating pressure 350 bar
    Width folded 2.55 m
    Remote controlled
    Lifting hook
    IMC integral machine control
    FX900 control unit

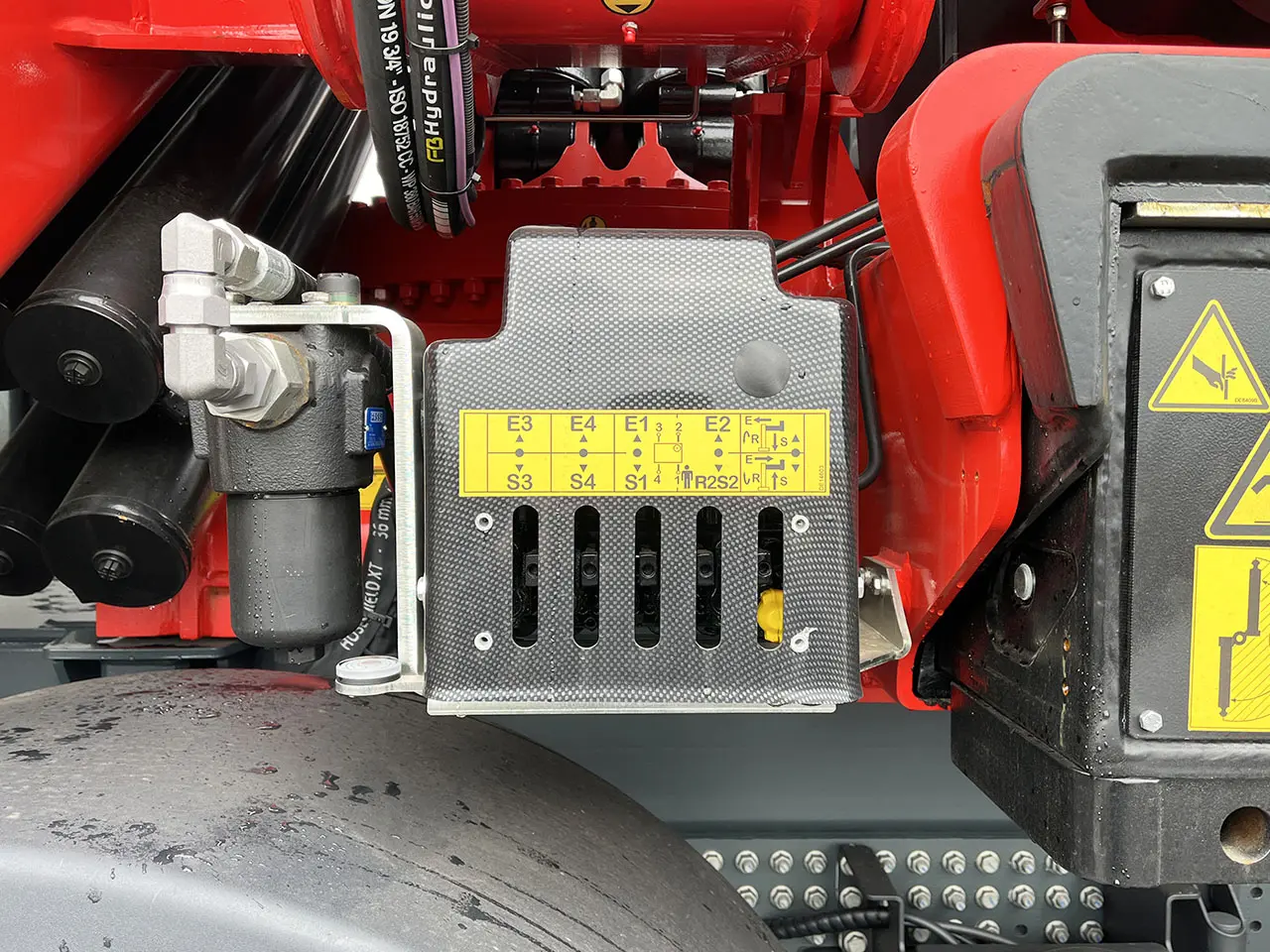

    D900 digital distributor bank

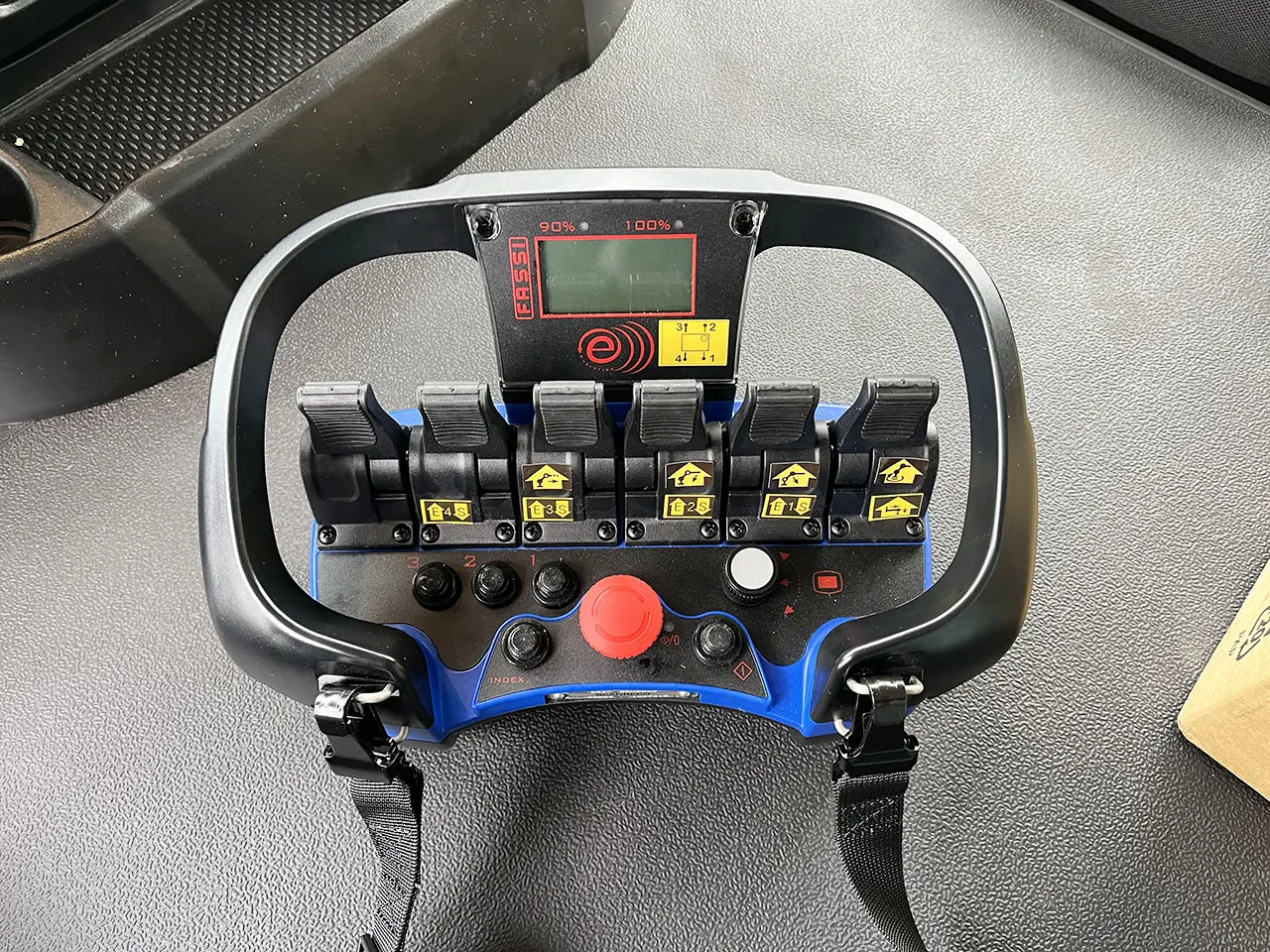

    RCH/RCS radio remote control unit
    ADC automatic dynamic control
    FX901 - touch screen display

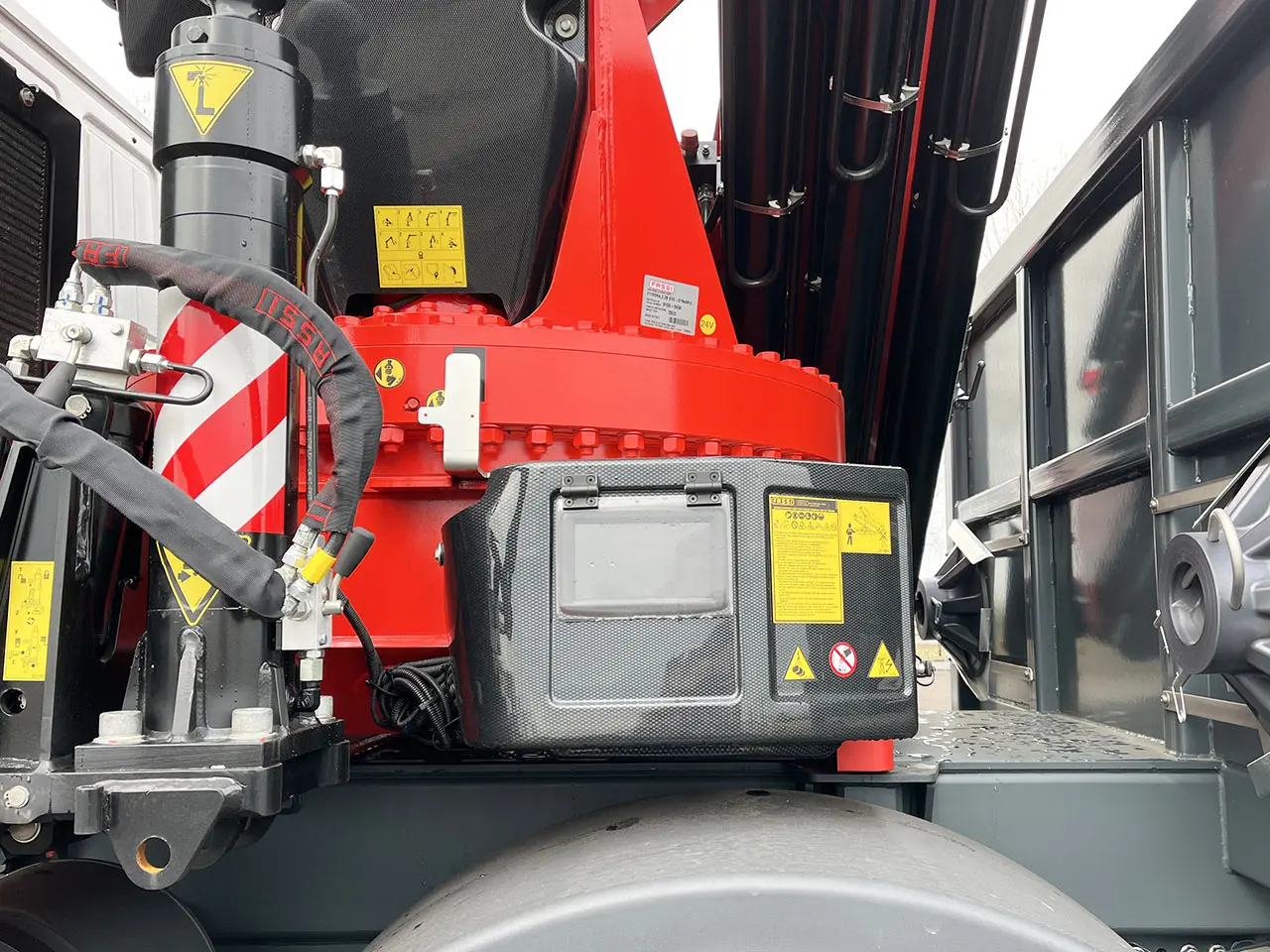

    Continuous rotation on a slew ring
    Carbon look crane unit

    Flat-bed twist-locks and lashing rings

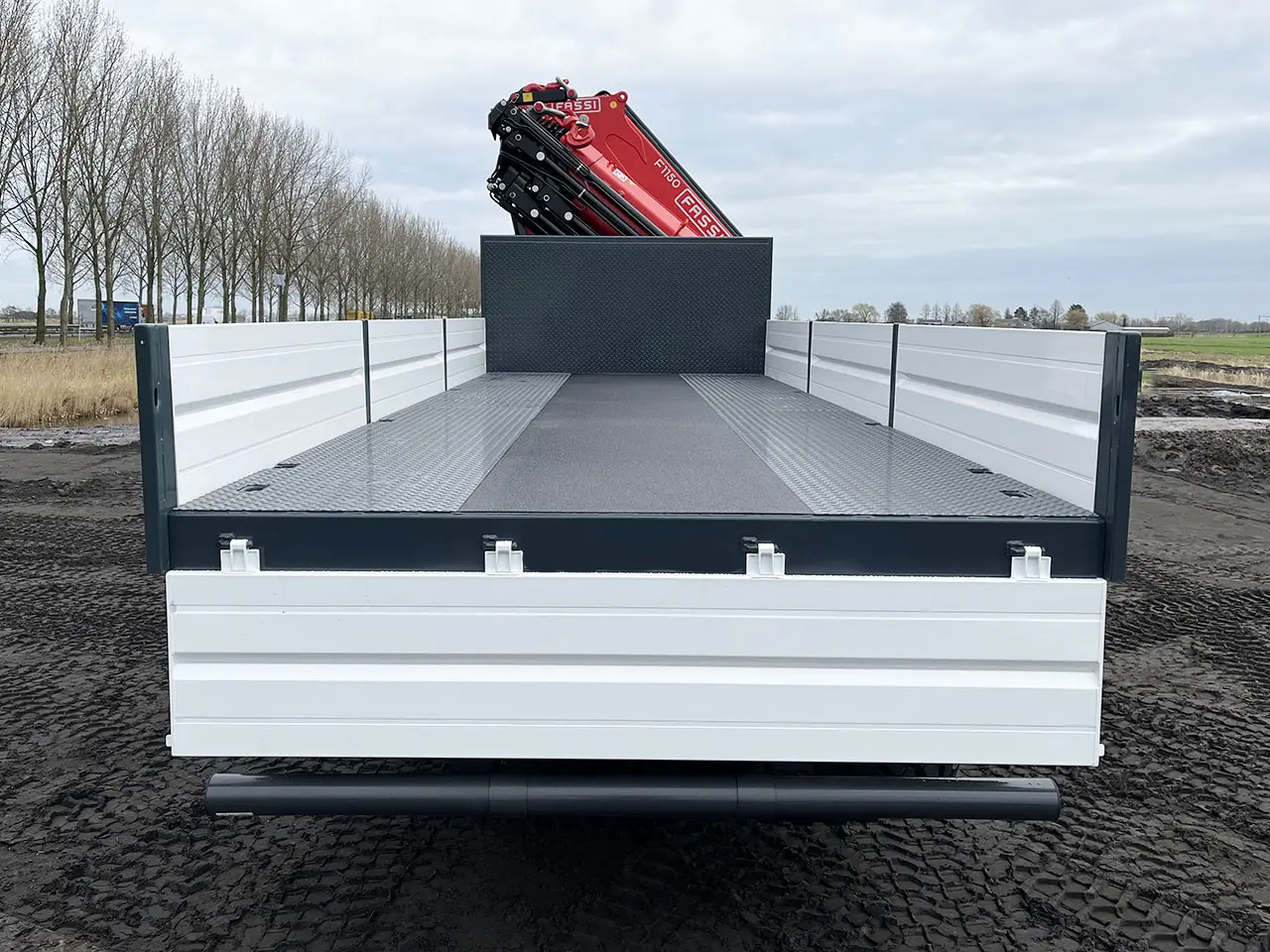

    Flat-bed dimensions 626 x 250 cm

    Complete specification in PDF.
