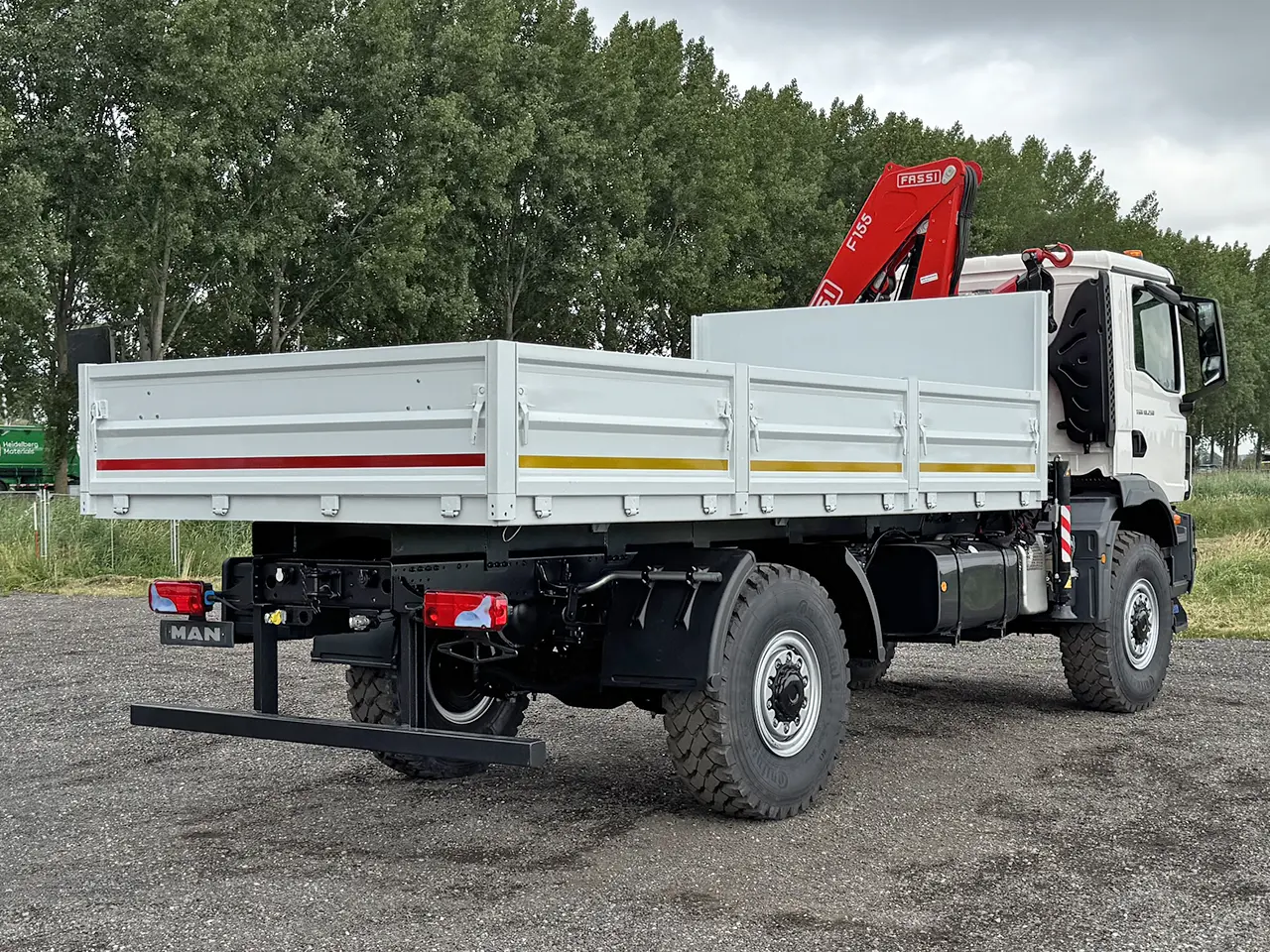

MAN TGM 18.250 BB CH 4x4 Crane Truck

Specifications

• ID

  VMA5258
• Units in stock

  2
• Vehicle status

  New / Unused
• Construction

  Crane Truck
• Axle-configuration

  4x4
• Engine power

  250hp/184kW
• Emission code

  EURO-4
• Engine type

  D0836LFL95
• Transmission

  Automatic
• Gearbox

  TipMatic 12.12OD
• PTO

  PTO Prepared
• Drive

  Left hand drive
• Suspension

  Spring
• Wheel base

  4.500 mm
• GVW

  18.000 kg
• Tyres

  14.00R20
• Cabin

  Day
• Production year

  2023
• Model year

  2023
• Construction brand

  Fassi
• External dimensions

  825x250x385cm
• Net unit price EXW

  € 135.000
• Remarks

  Fuel tank: 300 ltr.
  Air conditioning

  Equipped with Fassi crane and flatbed:
  Type: F155A.0.22
  Lifting moment: 133 KNm.
  Standard hydraulic reach: 8.30 mtr.
  Load at the max horizontal outreach: 1660 kg.
  Hydraulically extra extendable outriggers
  Long fixing rods

  Lifting capacity:
  6.160 kg / 2.15 m
  3.150 kg / 4.30 m
  2.190 kg / 6.10 m
  1.660 kg / 8.00 m

  Open flatbed body with foldable sideboards.

  Complete specification in PDF.
