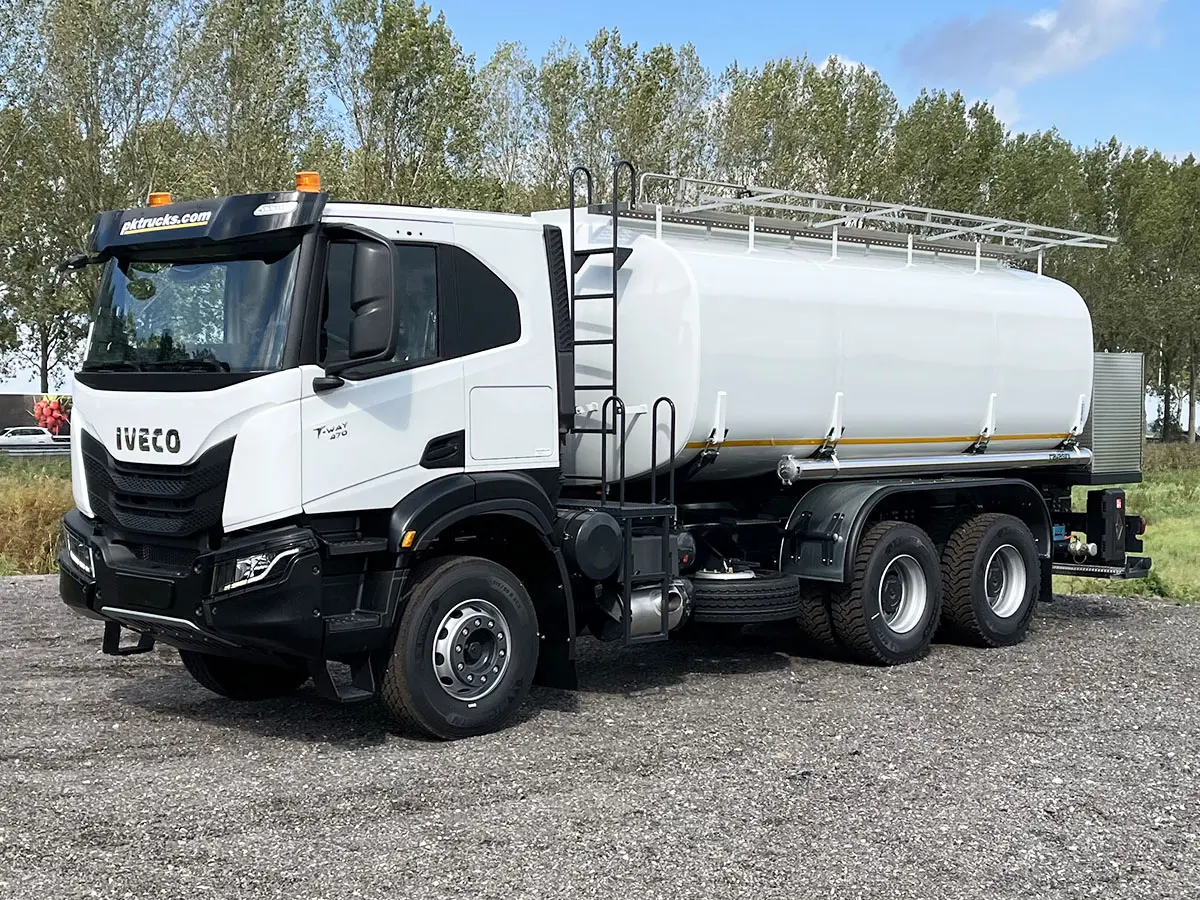

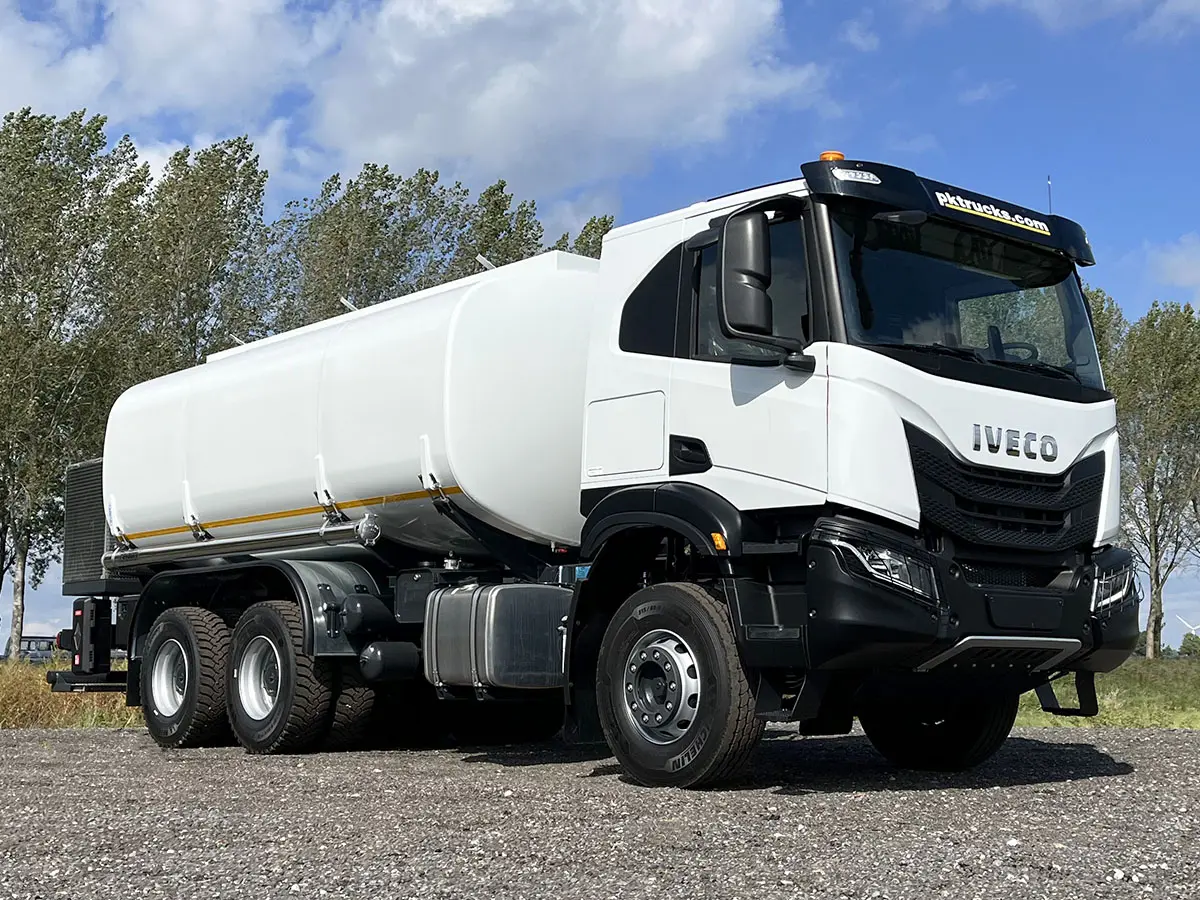

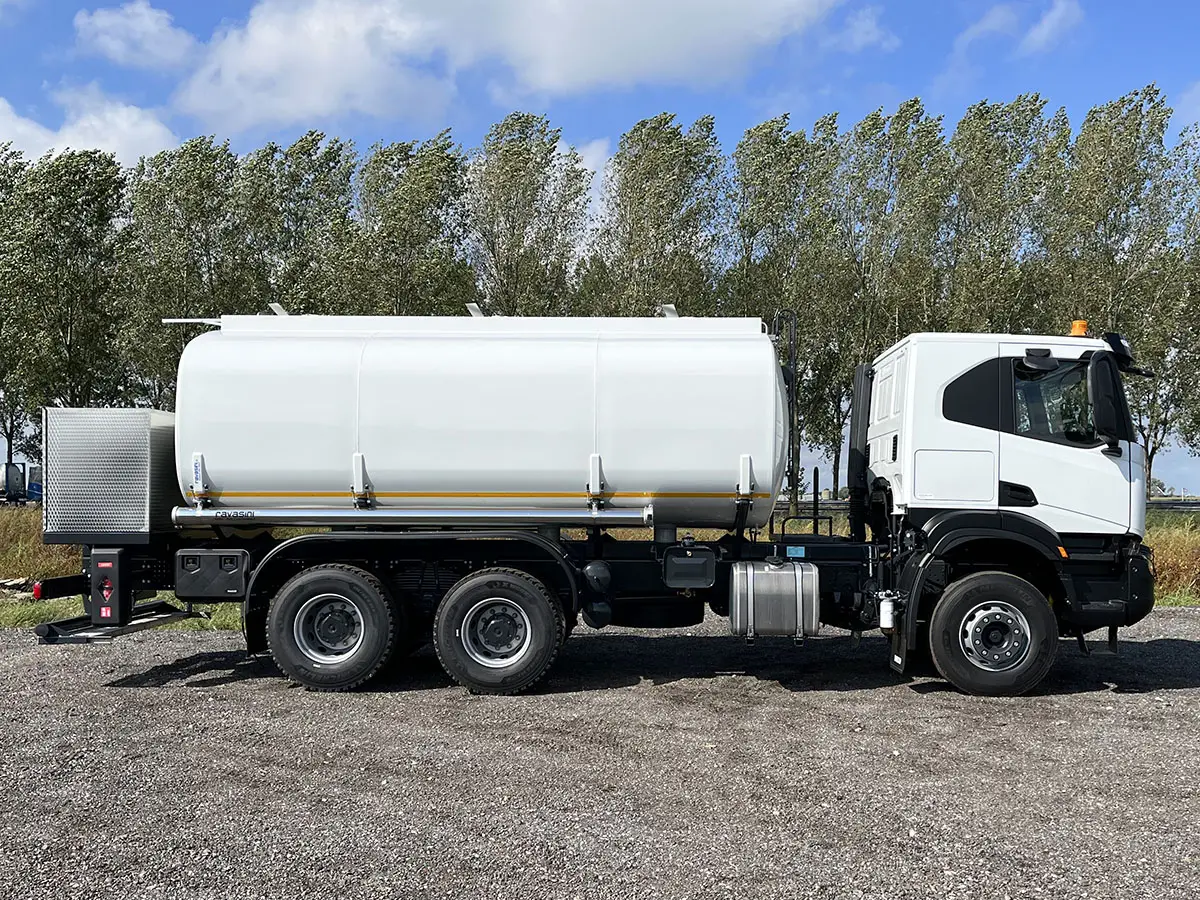

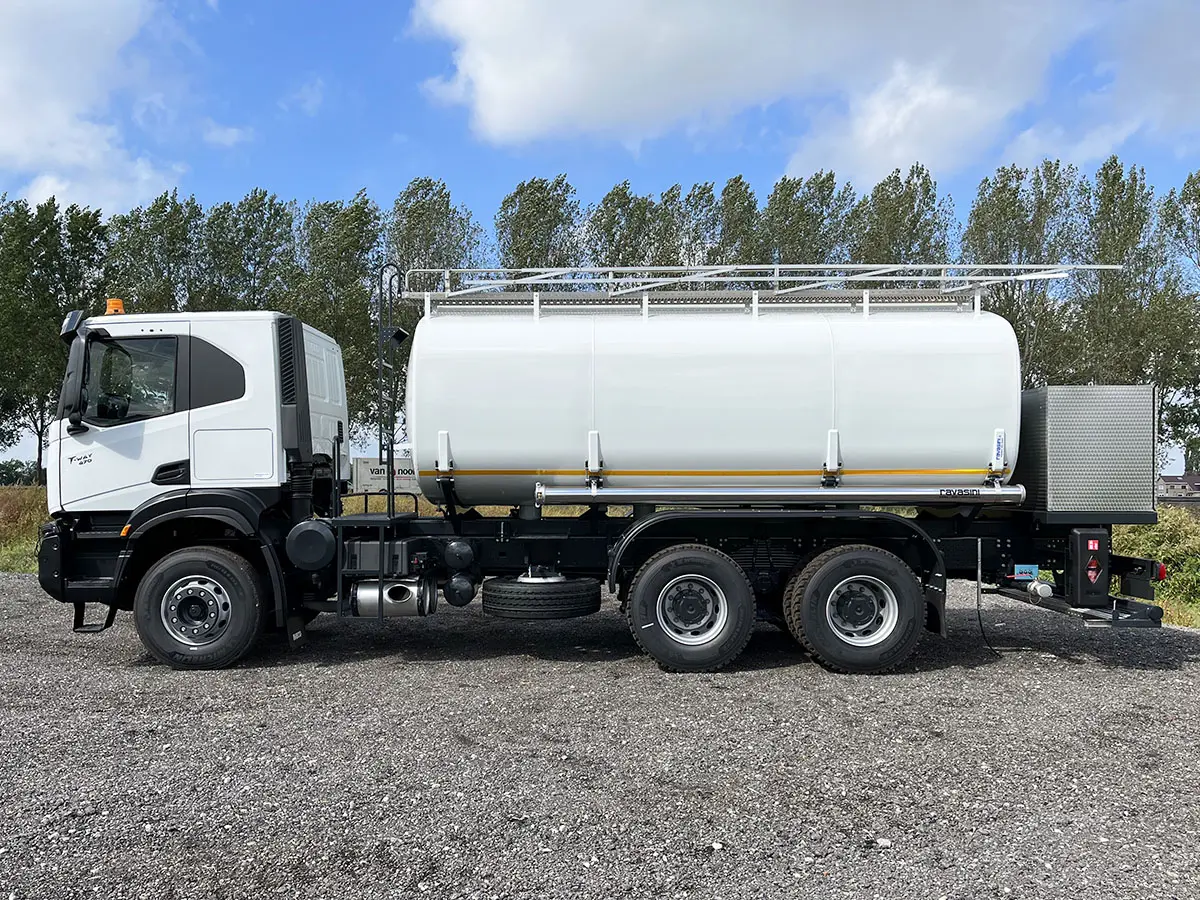

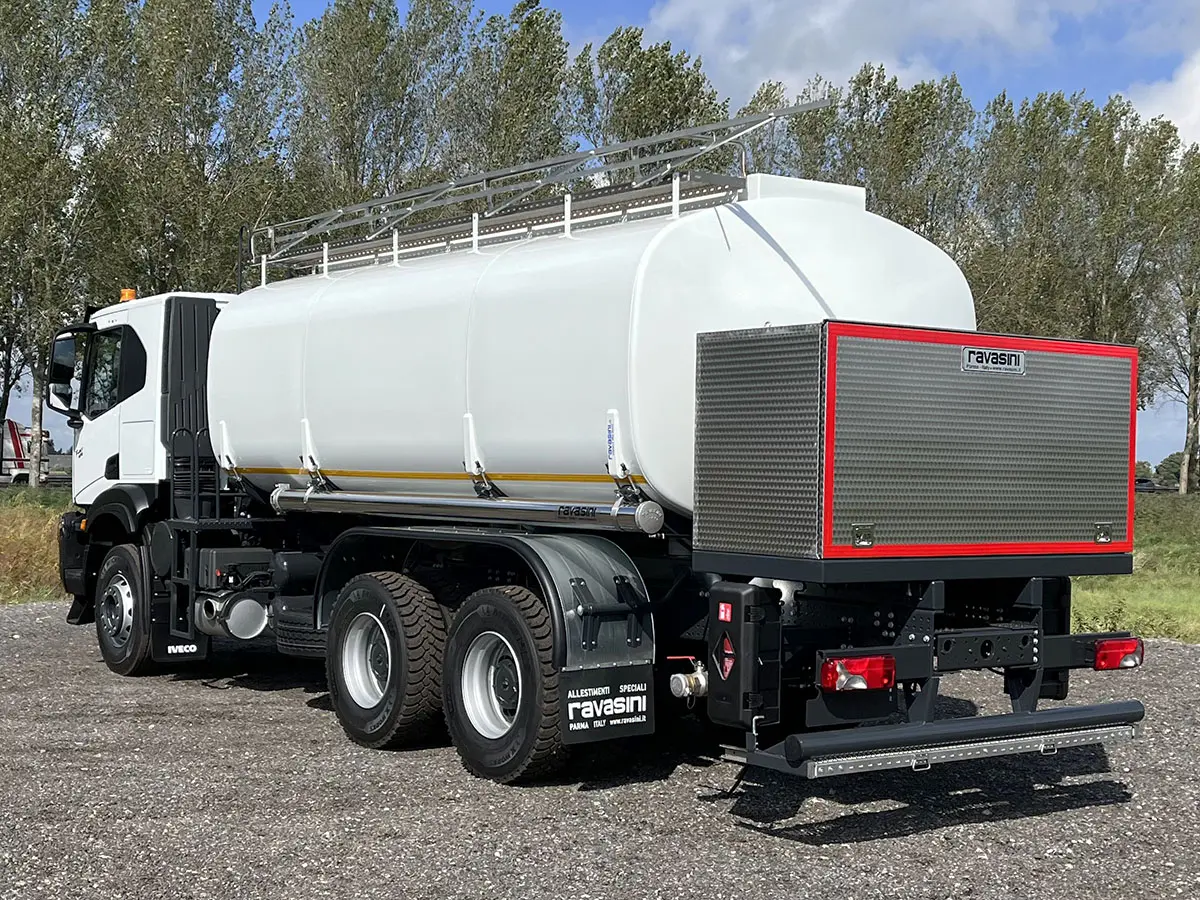

Iveco T-Way AT380T47H 6x4 Fuel Tank Truck

Net unit price EXW

€ 167.500

Total units (3)

Quotation request

Specifications
  • ID
    IV4887
  • Vehicle status
    New / Unused
  • Construction
    Fuel Tank Truck
  • Axle configuration
    3
  • Axle-configuration
    6x4
  • Engine power
    470hp/346kW
  • Emission code
    EURO-3
  • Engine type
    F3HGE611
  • Transmission
    Manual
  • Gearbox
    ZF16S2520TO
  • Suspension
    Spring
  • Wheel base
    4.200 mm
  • GVW
    33.500 kg
  • Tyres

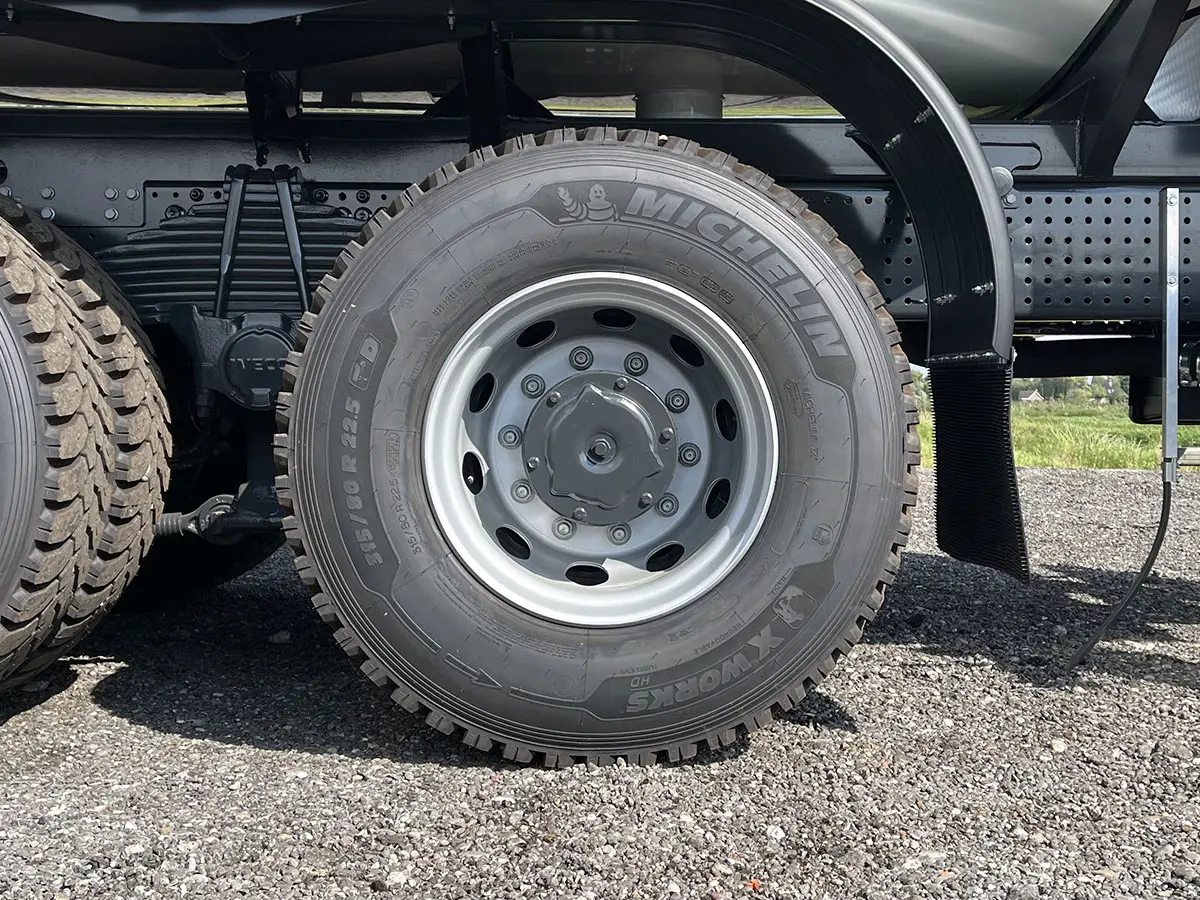

    315/80R22.5
  • Cabin

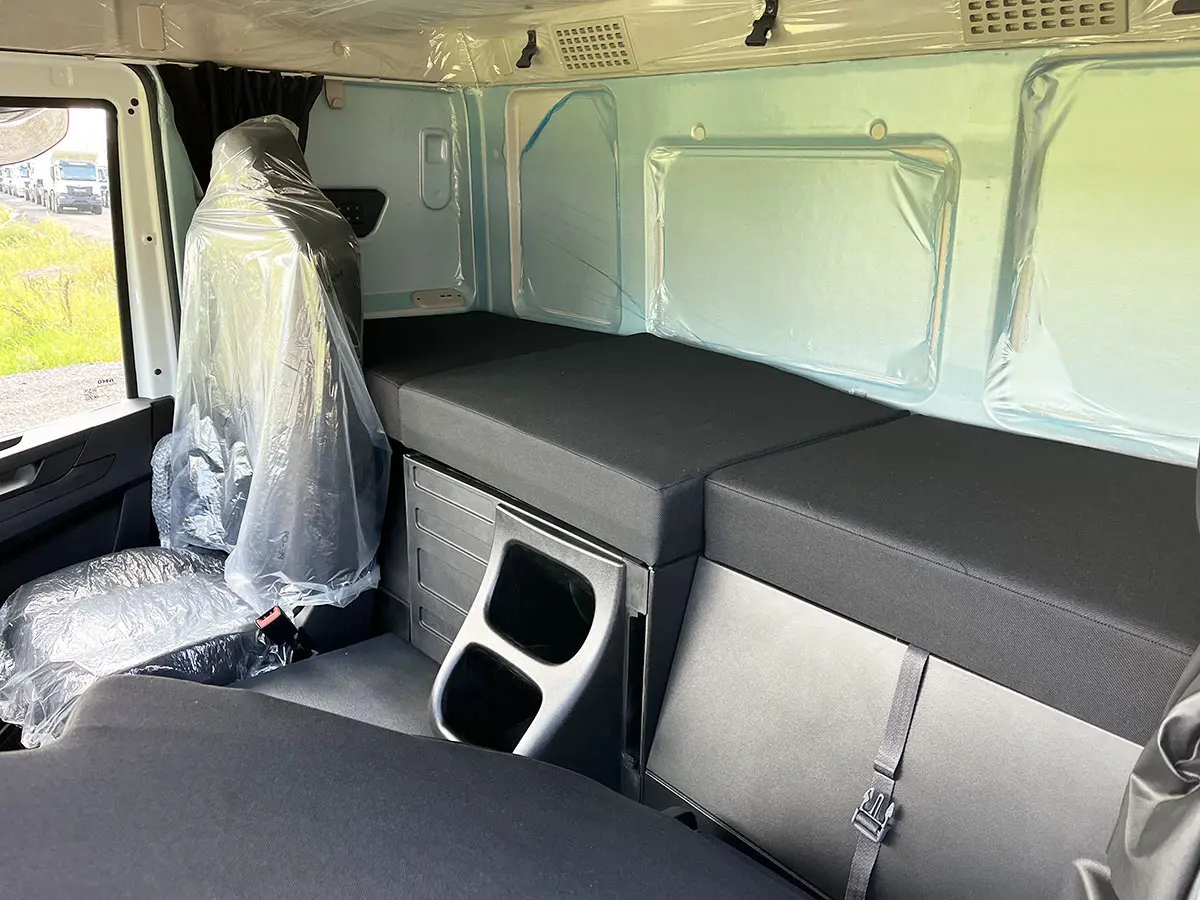

    Sleeper
  • Model year
    2023
  • Construction brand
    Ravasini
  • Construction volume
    20000 ltr
  • External dimensions
    960x250x360cm
  • Remarks
    Air conditioning

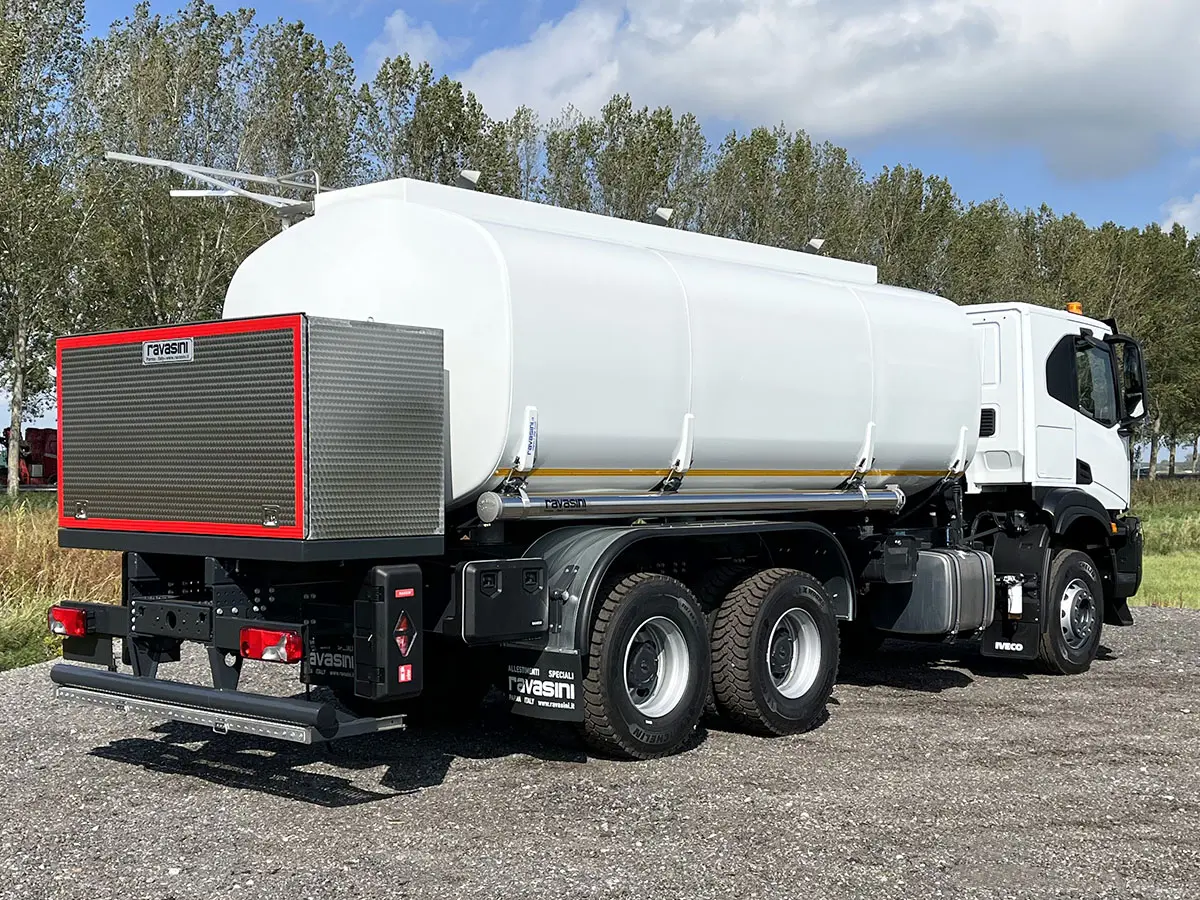

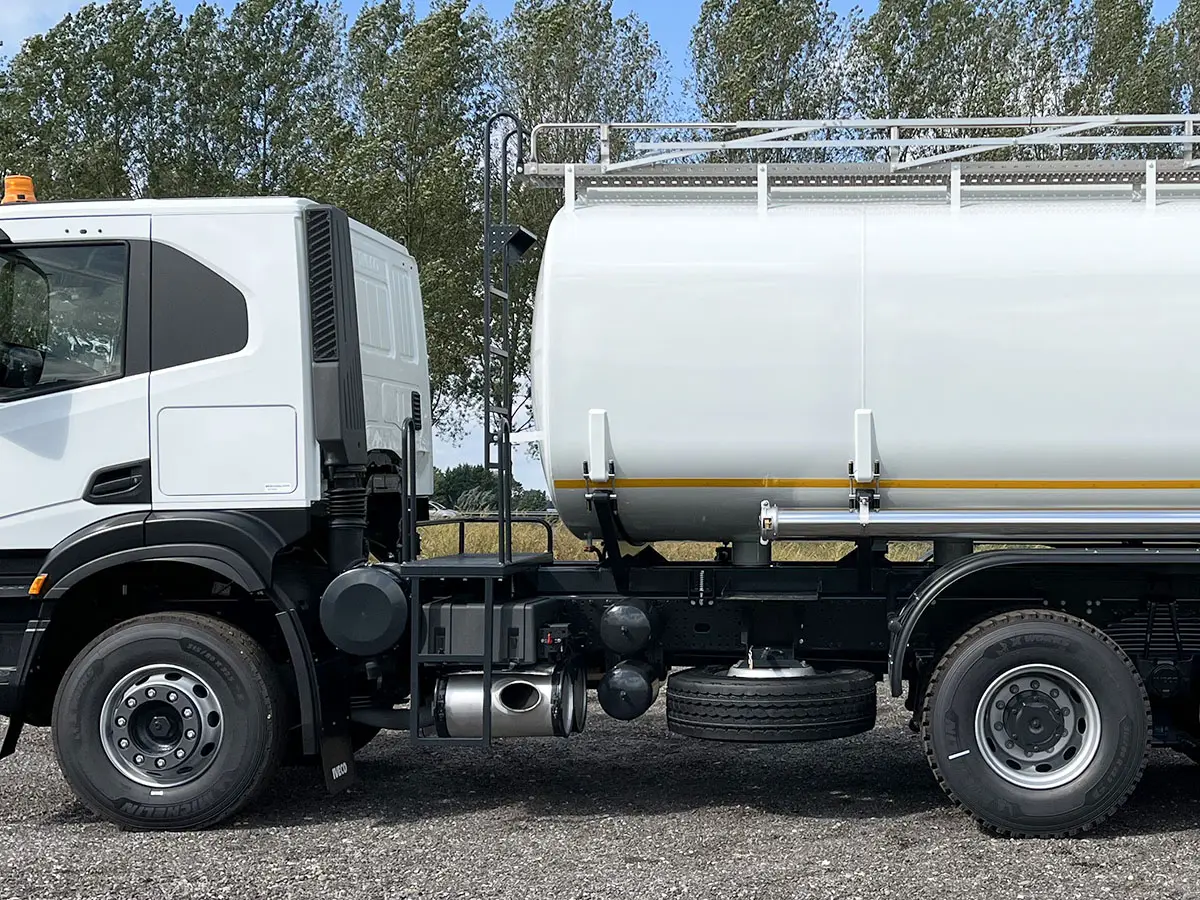

    Equipped with Ravasini fuel tank 20.000 ltr.
    Three compartments (6.800l+6.500l+6.800l+expansion volume)

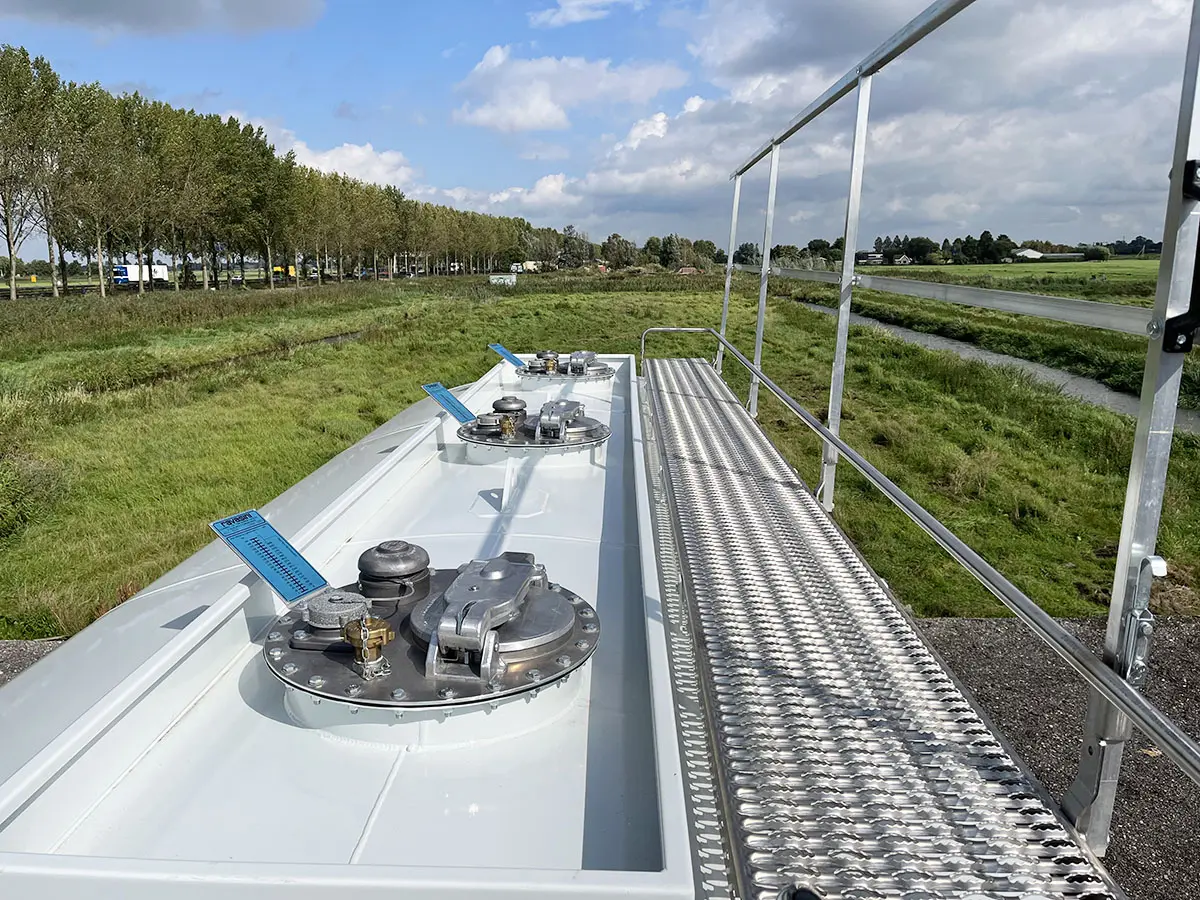

    Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.

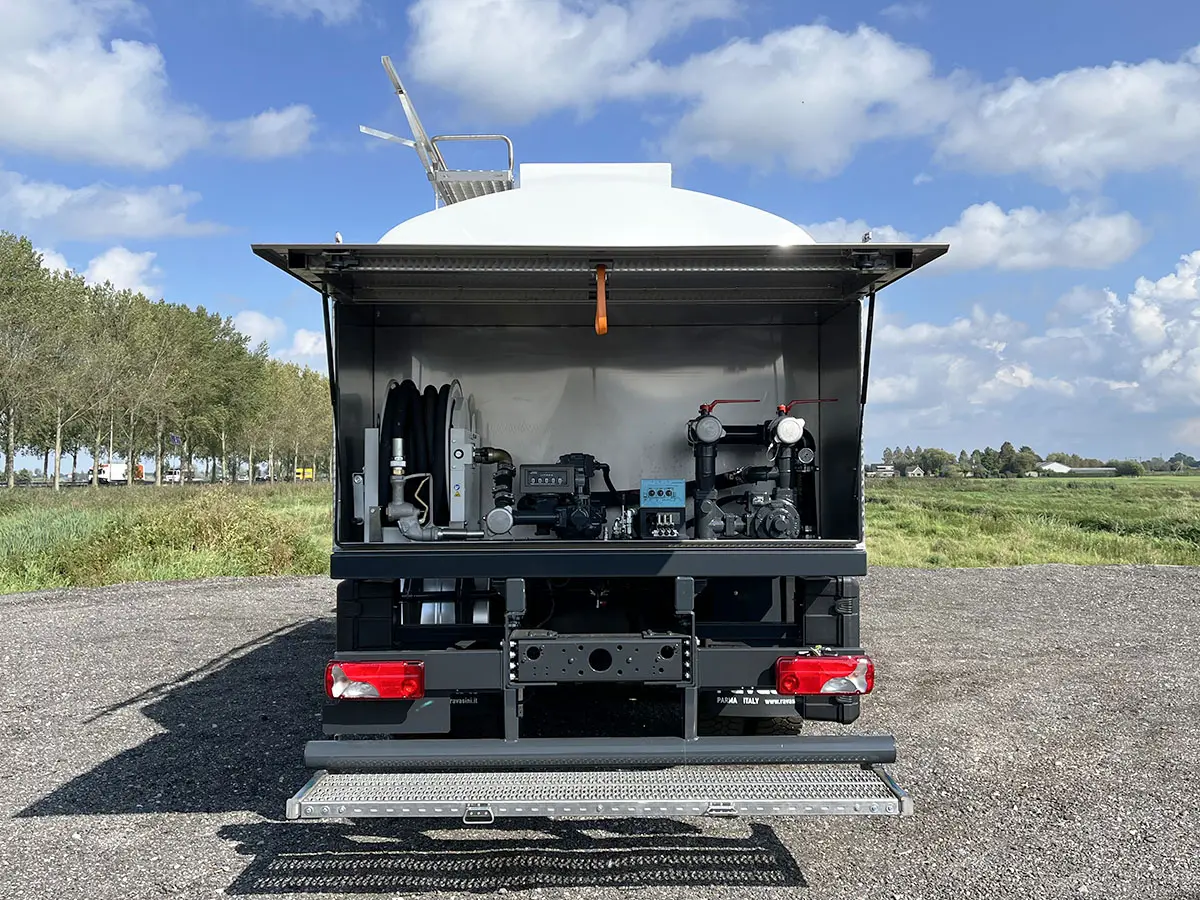

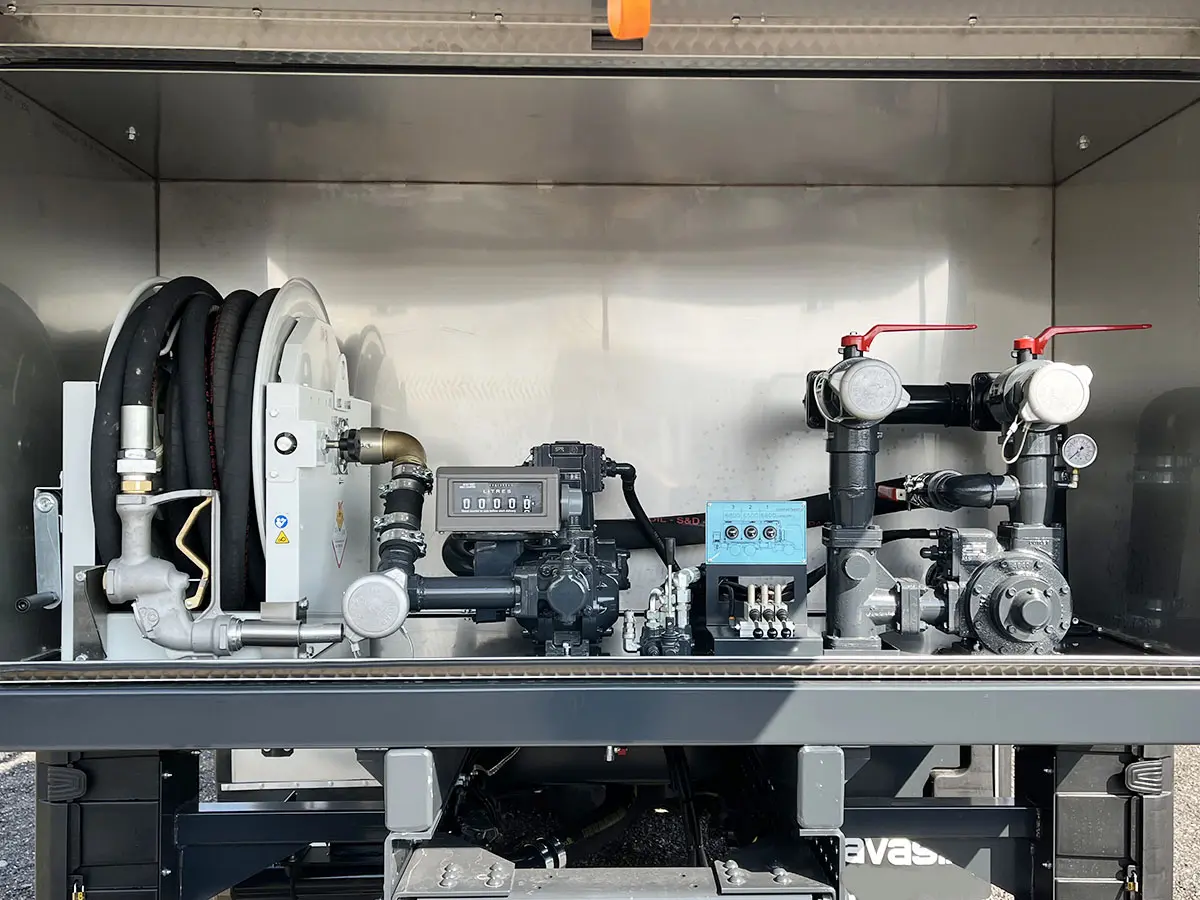

    Pumping unit placed in a suitable stainless steel box, positioned on the rear side of the vehicle.
    Positive displacement pump 500 l/1 min.
    Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
    Manual winding hose reel with 20 m of 1½ hose and delivery gun.

    Complete specification in PDF.
